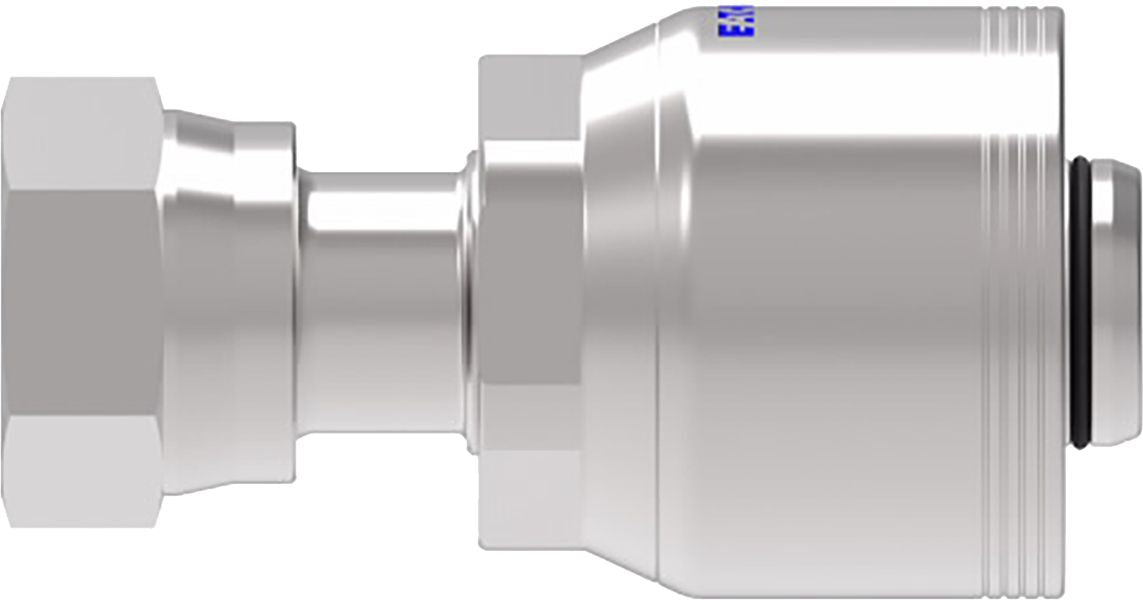

4S Series Crimp-On Hose End Fitting, Carbon Steel, Female Swivel O Ring Seal, Straight, 3/8" (-6) x 11/16-16 (-6)
(Pack of
1)
SKU:1175009 Item#: 1175009
Compatible Hoses
4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734729245
Item#: 1644494
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 300'
Item#: 1562971A
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.94" x 200'
Item#: 1562966A
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 200'
Item#: 1562953A
$0.00
Couldn't load pickup availability
Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT
Item#: 1489993
$0.00
Couldn't load pickup availability
Monsoon Hose Nozzle 3/4"
Item#: 61323
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11961
$0.00
Couldn't load pickup availability
Fender Splash Shield Retainer Nylon 20mm
Item#: P53958
$0.00
Couldn't load pickup availability
Bumper Fascia Push-Type Retainer Nylon 18mm
Item#: KT12847
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
Item#: 1372010
$0.00
Couldn't load pickup availability
Product Description
Compatible Hoses4S: H430 (-12 through -32); H430R (-12 through -32); EC525 (-12 through -32); H471 (-12 through -24); H464 (-12 through -32); EC810 (-12, -16)
6S: H471 (-32); EC810 (-20 through -32)
These fittings are designed to be crimped in Weatherhead® Coll-O-Crimp® machines.
Technical Specifications
| Item#: | 1175009 |
|---|---|
| Manufacturer Model #: | 4SA6FR6 |
| Manufacturer Series Number | 4S Series |
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Female |
| Fitting End Style | Flat Face O-Ring Face Seal |
| Fitting End Type | Swivel |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | 11/16-16 (-6) |
| Weatherhead No. | 4SA6FR6 |
| Size | (-6)X(-6) |
| UNSPSC #: | 27121707 |
| TAA Compliant: | No |
| Weight: | 0.24 lb |
