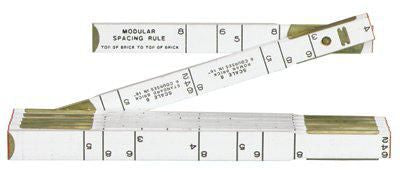

6' x 5/8" Masonry Wood Rule Red End®
(Pack of
1)
SKU:1282560 Item#: 1282560
• All sections have square ends
• Every joint opens on even number
• Inside marked with 6 scales in a 16" module. The scales are as follows
• 2 courses in 16" space (for concrete blocks and glass blocks)
• 3 courses in 16" space (For facing tile)
• 4 courses in 16" space ( for Roan brick). Scales include mortar space and spacing for 6" and 12" blocks
• Outside is graduated on both edges to 1/16ths
• The first end section is a short section which permits butting the rule on the first 16" module
Frequently Bought Together
Metric Indented Hex Head Bolt with 17mm Washer
Item#: KT11580
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Item#: KT13984
$0.00
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Item#: KT13687
$0.00
Couldn't load pickup availability
Product Description
• All sections have square ends• Every joint opens on even number
• Inside marked with 6 scales in a 16" module. The scales are as follows
• 2 courses in 16" space (for concrete blocks and glass blocks)
• 3 courses in 16" space (For facing tile)
• 4 courses in 16" space ( for Roan brick). Scales include mortar space and spacing for 6" and 12" blocks
• Outside is graduated on both edges to 1/16ths
• The first end section is a short section which permits butting the rule on the first 16" module
Technical Specifications
| Item#: | 1282560 |
|---|---|
| Manufacturer Model #: | 646L |
| Type | Masonry Rule |
| Length | 6 ft |
| Graduations | 16ths, 16" module |
| Material | Wood |
| Finish | Lacquer |
| Width | 5/8 " |
| Measuring System | Inch |
| Increment @ Scale | 1/16 in @ 1 in |
| Number of Scales | 7 |
| UPC | 37103453457 |
| Specialty Scales | Concrete/Glass Block, Engineered Brick, Facing Tile, Firing Til |
| Measurement Type | Length |
| UNSPSC #: | 27111801 |
| TAA Compliant: | Yes |
