Axion MSR Corrosion Resistant Pedestal Eye/Face Wash
(Pack of
1.0)

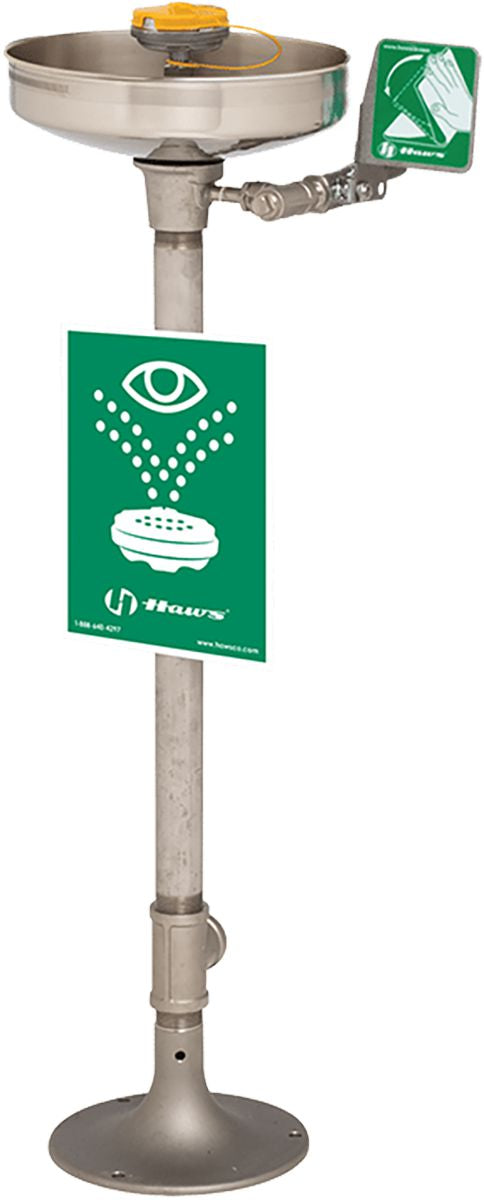

A stainless steel pedestal-mounted eye/face wash includes an 11" round bowl, an eye/face wash head with inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, Type 316 stainless steel ball valve equipped with stainless steel ball and stem, and Type 304 stainless steel in-line 50 x 50 mesh water strainer. Unit also includes Type 304 pipe, fittings, and floor flange, along with a yellow plastic dust cover, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Pre-built and fully water/pressure tested
• Corrosion resistant construction from Type 304 Stainless Steel make for one corrosive resistant piece of equipment
• ANSI Z358.1 tempering compliance options
• Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyewash Bottle, Screw Cap, 16 oz.
Couldn't load pickup availability
Eyewash Stations, Two 32 oz. Screw Cap Bottle
Couldn't load pickup availability
SmartCompliance Refill Eye Wash, Eye Pads & Tape, 1 oz.
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Friction Tape 3/4" x 60'
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Couldn't load pickup availability
Prem Black Nitrile Glvs, XLG
Couldn't load pickup availability
Butyl Windshield Tape 1/4" x 15'
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Blue 17mm
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Eyewash Refill Cartridge
Couldn't load pickup availability
Wall-Mount Haloâ„¢ Eyewash Station
Couldn't load pickup availability
Product Description
A stainless steel pedestal-mounted eye/face wash includes an 11" round bowl, an eye/face wash head with inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, Type 316 stainless steel ball valve equipped with stainless steel ball and stem, and Type 304 stainless steel in-line 50 x 50 mesh water strainer. Unit also includes Type 304 pipe, fittings, and floor flange, along with a yellow plastic dust cover, universal sign, 1/2" NPT inlet, and 1-1/4" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Pre-built and fully water/pressure tested
• Corrosion resistant construction from Type 304 Stainless Steel make for one corrosive resistant piece of equipment
• ANSI Z358.1 tempering compliance options
• Certified by CSA to meet the ANSI Z358.1 Standard for Emergency Eyewash and Shower Equipment
Technical Specifications
| Item#: | 1647996 |
|---|---|
| Style | Pedestal Mount |
| Type | Eye/Face Wash Station |
| Description | Eye/Face Wash Station |
| Flow Rate | 12 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Stainless Steel |
| Mount Style | Pedestal |
| Color | Silver |
| Eyewash Bowl Diameter | 11 " |
| Width | 15 " |
| Height | 40 " |
| Eye Wash Material | Stainless Steel |
| Body Material | Stainless Steel |
| Includes | Dust Cover, Floor Flange, Inspection Tag, Pipe and Fittings, Universal Identification Sign |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
