Axion MSR Wall Mount Eye/Face Wash
(Pack of
1.0)

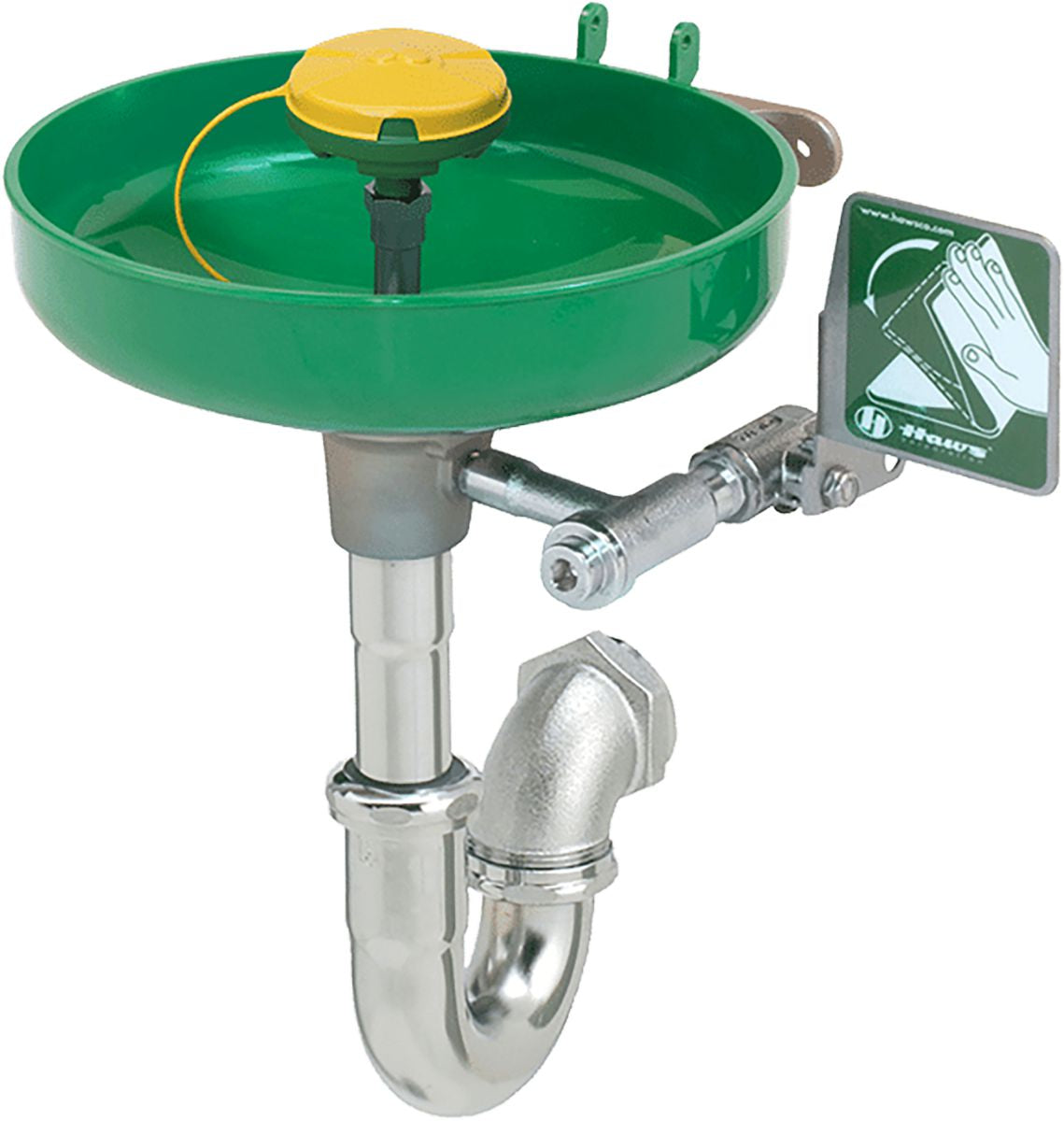

A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, tail piece and trap, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, drain trap and tailpiece, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor, aluminum wall bracket, and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT * ANSI Z358.1 tempering compliance options
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Eyewash Stations, Two 32 oz. Screw Cap Bottle
Couldn't load pickup availability
SmartCompliance Refill Eye Wash, Eye Pads & Tape, 1 oz.
Couldn't load pickup availability
Drench Shower/Eye Wash Station Combination
Couldn't load pickup availability
Adhesive-Back Shim Stock 1/8 x 5/8" x 50'
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
Couldn't load pickup availability
Universal Sorbent Pad
Couldn't load pickup availability
Prem Blk Ntrl Glvs, Lrg, CS
Couldn't load pickup availability
High-Strength Double Side Molding Tape 1/4" x 50'
Couldn't load pickup availability
Marker Pen Pink
Couldn't load pickup availability
Nylon Cable Tie 15-1/4" Black
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Portable Air-Pressurized Emergency Eyewash
Couldn't load pickup availability
Axion MSR Wall Mount Eye/Face Wash
Couldn't load pickup availability
Hand Wash Sink with Axion Eye/Face Wash
Couldn't load pickup availability
Product Description
A wall mounted eye/face wash includes a green ABS plastic 11" bowl. The wash head features an inverted directional laminar flow which achieves Zero Vertical Velocity supplied by an integral 3.7 gpm flow control, chrome-plated brass stay-open ball valve equipped with stainless steel ball and stem, tail piece and trap, and chrome-plated brass in-line 50 x 50 mesh water strainer. Unit also includes cast-aluminum chromate protected wall bracket, yellow plastic pop-off dust cover for eyewash head, drain trap and tailpiece, universal sign, 1/2" NPT inlet, and 1-1/2" NPT waste.• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Features a round 11" (27.9 cm) green ABS plastic receptor, aluminum wall bracket, and tailpiece and trap
• Includes a mesh in-line strainer to collect line debris, and ball valve with stainless steel ball and stem for durability
• Supply: 1/2" NPT. Waste: 1- 1/2" NPT * ANSI Z358.1 tempering compliance options
Technical Specifications
| Item#: | 1647977 |
|---|---|
| Style | Plumbed In |
| Type | Eye/Face Wash |
| Description | Eye/Face Wash Station |
| Flow Rate | 10 gal/min |
| Water Supply | 1/2" NPT |
| Approvals | ANSI/ISEA Z358.1, CSA Certified |
| Material | Plastic/Chrome-Plated Brass/Stainless Steel |
| Mount Style | Wall |
| Color | Green |
| Eyewash Bowl Diameter | 11 " |
| Width | 14-1/2 " |
| Eye Wash Material | Plastic |
| Body Material | Plastic |
| Includes | Dust Cover, Mesh in-line Strainer, Ball Valve, Stem, Wall Bracket |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
