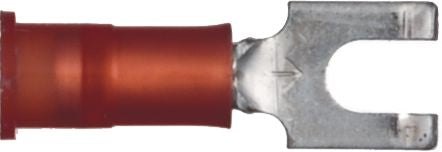

Block Spade Terminal, Nylon Insulated, 22 to 18 AWG, #10 Stud Size, Red
(Pack of
25)
SKU:25257 Item#: 25257
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Combines the features of the flanged and block spades into one product• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Frequently Bought Together
Miniature Incandescent Bulb 12V 36CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 37CP
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Bumper Cover Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Flanged Spade Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Block Spade Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Spade Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Butt Connector 8 AWG Red
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Combines the features of the flanged and block spades into one product• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Technical Specifications
| Item#: | 25257 |
|---|---|
| Type | Crimp |
| Style | Nylon Insulated |
| Wire Gauge | 22-18 AWG |
| Stud Size | 10 |
| Color | Red |
| Approvals | UL, CSA |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
