Home Button Head Socket Cap Screws Button Head Socket Cap Screw Steel 1/4-28 x 3/8"
Button Head Socket Cap Screws

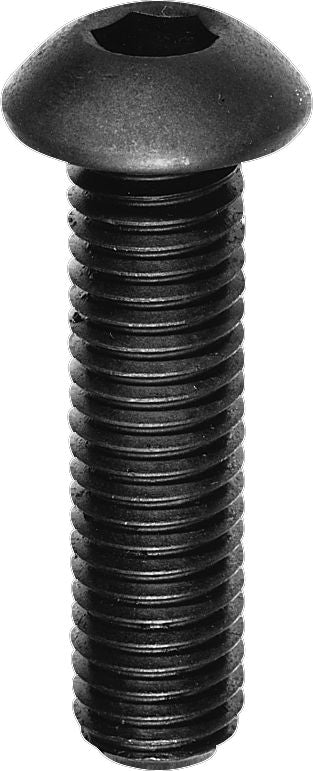

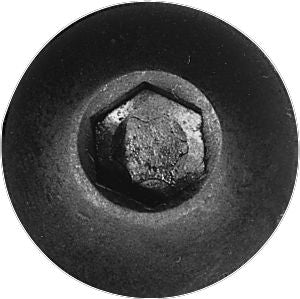

Button Head Socket Cap Screw, Alloy Steel, Black Oxide Finish, Fine Thread, 5/32" Hex Key, 1/4-28 x 3/8"
(Pack of 50)

Item#: 81496

Kent Automotive

• High-strength, heat-treated high-alloy steel
• Cold-formed
• Black oxide finish
• Conforms to ANSI B18.3 and Federal FF-S-86 specifications
• For light fastening applications such as guards, hinges, cover plates, etc., where appearance is important
NOTE: Button heads should not be used in critical high-strength applications where socket head cap screws should be used.

Read More
Check Availability

Catalog page#: 11-59

Frequently Bought Together


Button Head Socket Cap Screw Steel M10-1.5 x 55mm

Item#: 1333865

Button Head Socket Cap Screw SS M5-0.8 x 30mm

Item#: 1295617

Button Head Socket Cap Screw SS M6-1 x 8mm

Item#: 1295635

Acorn Nut A2 Stainless Steel M6-1

Item#: 27793

Hex Nut Grade 8 Steel M8-1.25

Item#: 4304

SAE J995C Locknut with Nylon Insert Grade 8 3/8-16

Item#: 53981

Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Rivet Nylon 1/4"

Item#: P21213

Front Bumper Drive Rivet Plastic 10mm Hole

Item#: KT14285

Button Head Socket Cap Screw SS #5-40 x 1/2"

Item#: 1295539

Button Head Socket Cap Screw Steel M10-1.5 x 65mm

Item#: 1332871

Button Head Socket Cap Screw SS #10-24 x 1/2"

Item#: 52370

Product Description

• High-strength, heat-treated high-alloy steel
• Cold-formed
• Black oxide finish
• Conforms to ANSI B18.3 and Federal FF-S-86 specifications
• For light fastening applications such as guards, hinges, cover plates, etc., where appearance is important
NOTE: Button heads should not be used in critical high-strength applications where socket head cap screws should be used.

Technical Specifications

Item#: 81496
Diameter 1/4 "
Thread Pitch 28
Length 3/8 "
Head Style Button
Finish Black Oxide
Material Alloy Steel
Thread Fine
Tensile Strength 150,000 PSI
Type Button Head Cap Screw
Drive Hex
Key Size 5/32 "
Size 1/4X3/8 "
UNSPSC #: 31161518
TAA Compliant: No
Weight: 0.38 lb
