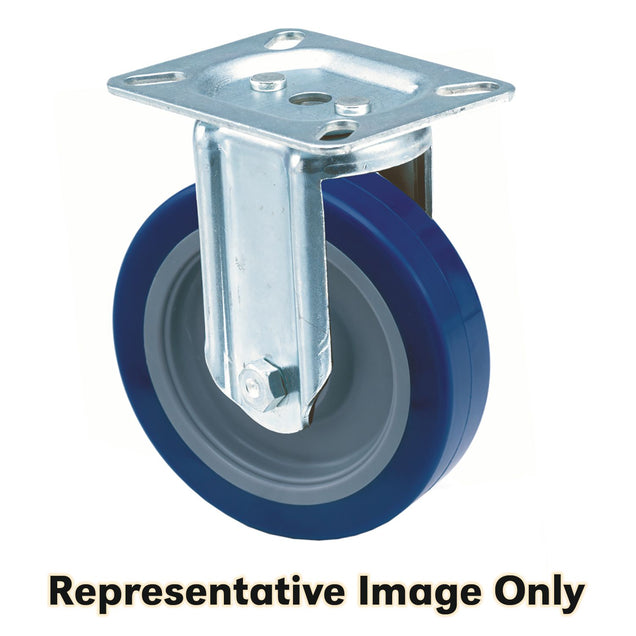

Caster Rigid Polyurethane Wheel
(Pack of
1.0)
• Corrosion-resistant zinc plating
• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Brake Kit For Light-Medium-Duty Swivel Casters
Couldn't load pickup availability
Caster Rigid Medium Duty 6 x 1-3/8" Wheel
Couldn't load pickup availability
AkroBin®, Red, 14-3/4" x 16-1/2" x 7"
Couldn't load pickup availability
AkroBin®, Blue, 10-3/4" x 8-1/4" x 7"
Couldn't load pickup availability
ShelfMaxâ„¢ Bin, Red, 11-5/8" x 6-5/8" x 6"
Couldn't load pickup availability
Caster Swivel with Brake Polyurethane Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Caster Rigid Soft Rubber Wheel
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Rocker Molding Clip with Sealer Nylon Gray 12mm
Couldn't load pickup availability
Product Description
• Corrosion-resistant zinc plating• 5/16" dia. nut and bolt axle on 3"
• 3/8" dia. nut and bolt axle on 4", 5", and 6"
• Swivel casters feature durable, heat-treated, factory-lubricated double ball raceways for high performance
• Swivel casters include a side pinch brake
• Delrin® bearings on all wheels are durable, corrosion-resistant, and require infrequent or no lubrication
3" Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 3"
Hole Dia.: 11/32"
Bolt Dia.: 5/16"
4", 5", and 6" Top Plate Dimensions
Overall Size: 3-1/8" x 4-1/8"
Hole Spacing: 1-3/4" x 3" to 2-3/8" x 3-3/8"
Hole Size: 3/8" x 3/4" slots
Bolt Dia.: 5/16"
• Applications include industrial, office and retail carts, dollies, stands, cabinets, racks, and other mobile equipment
Technical Specifications
| Item#: | 1588629 |
|---|---|
| Type | Rigid |
| Style | Medium Duty |
| Wheel Type | Polyurethane |
| Wheel Diameter | 4 " |
| Wheel Width | 1-1/2 " |
| Load Rating | 375 lb |
| Top Plate Overall Size | 3-1/8" x 4-1/8 " |
| Top Plate Bolt Diameter | 5/16 " |
| Top Plate Hole Spacing | 1-3/4" x 3" to 2-3/8" x 3-3/8 " |
| Top Plate Hole Diameter | 3/8" x 3/4" slots |
| Finish | Zinc Plated |
| UNSPSC #: | 31162701 |
| TAA Compliant: | Yes |
| Weight: | 1.67 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
