Home Discontinued Caster Swivel Lite-Med Duty 3-1/2 x 1-1/4" Wheel
Discontinued

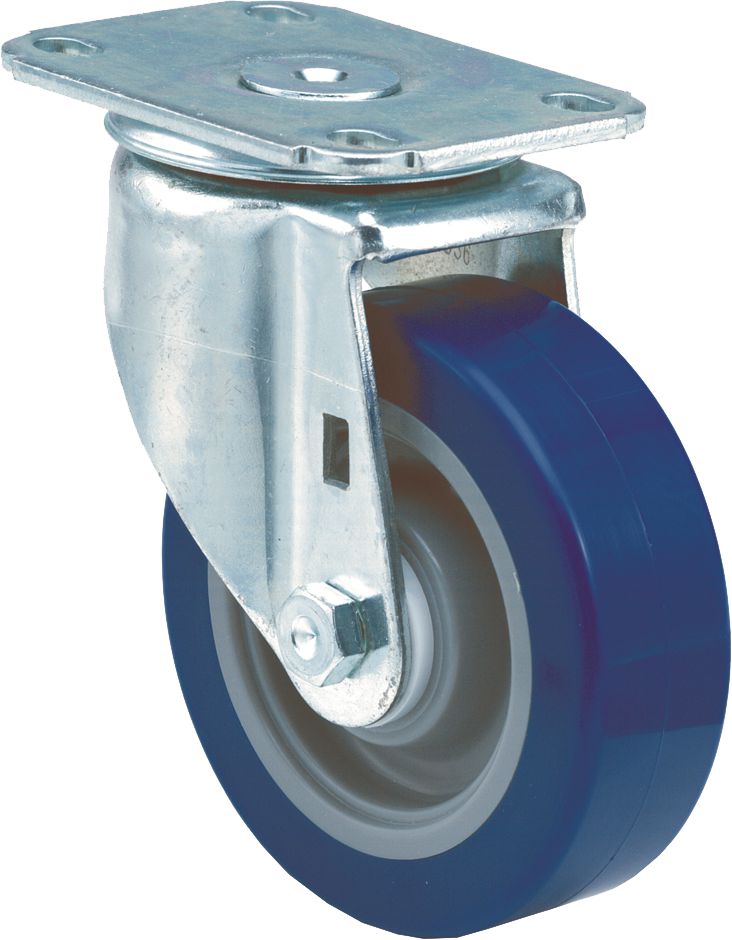

Caster, Swivel, Light-Medium Duty, Institutional, 3-1/2" Diameter, 1-1/4" Width, 4-5/8" Overall Height, 250 Lb Safe Load, Polyuret
(Pack of 1)

Item#: 10804

Kent Automotive

PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover standard on all swivel casters
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Engine Under Cover Drive Rivet Plastic 7mm Hole

Item#: KT13998

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Front Fender Push-Type Retainer Nylon 20mm

Item#: KT11397

Product Description

PolyurethaneThis basic hard tread wheel has a polyurethane tread molded and mechanically locked to a polypropylene plastic hub. It offers excellent floor protection and abrasion resistance, rolling ease, quiet operation and resistance to water, acids, oil and most chemicals. Tread hardness: 50 to 60 Shore D.
• Corrosion-resistant zinc plating
• Self-lubricating Delrin wheel bearings
• NSF certified
• 3/8" dia. nut and bolt axle
• Extra strength, large diameter swivel caster has durable, heat-treated, factory lubricated double ball raceways for high performance
• Dust cover standard on all swivel casters
Top Plate Dimensions
Overall Size: 2-3/4" x 3-3/4"
Hole Spacing: 1-3/4" x 2-5/8" to 3"
Hole Size: 11/32" x 1/2" slots
Bolt Dia.: 5/16"
• Applications include food processing, food service, cafeteria, restaurant, kitchen, hospital, pharmaceutical, laundry equipment, general purpose industrial and commercial applications

Technical Specifications

Item#: 10804
Type Swivel
Style Light-Medium Duty
Wheel Type Polyurethane
Wheel Diameter 3-1/2 "
Wheel Width 1-1/4 "
Overall Height 4-5/8 "
Load Rating 250 lb
Top Plate Overall Size 2-3/4 x 3-3/4 "
Top Plate Bolt Diameter 5/16 "
Top Plate Hole Spacing 1-3/4 x 2-5/8 to 3 "
Top Plate Hole Diameter 11/32 x 1/2 slots "
Finish Zinc Plated
Specifications NSF Certified
UNSPSC #: 31162701
TAA Compliant: Yes
Weight: 1.95 lb
