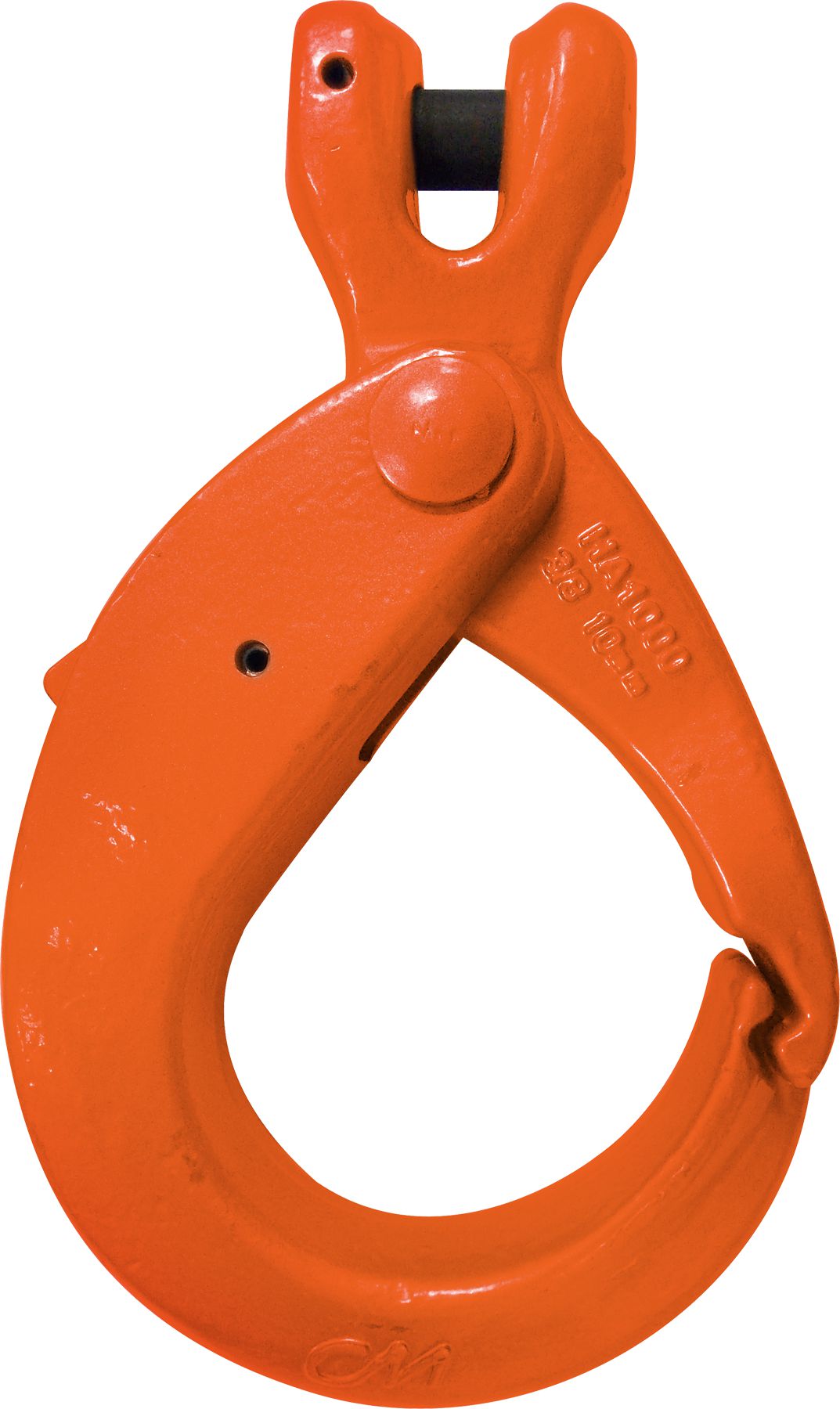

Clevlok Style Latchlok Hook, Grade 100, 1/2", 15,000 lb WLL
(Pack of
1)
SKU:1429762 Item#: 1429762
• High cycling, long life spring
• “I” beam construction for greater strength
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Frequently Bought Together
Cowl Bumper Fender Liner/Engine Under Cover Rivet
$0.00
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Drive Rivet Nylon M8
$0.00
Couldn't load pickup availability
Product Description
• High cycling, long life spring• “I” beam construction for greater strength
• 100% proof tested
• Fatigue rated to Grade 100 specifications
• Durable orange powder coated finish
• Do not apply load unless latch and hook are completely closed and locked
• Make certain that the latch does not support any part of the load
• When lifting, make certain that the load is firmly seated in the base (bowl) of the hook
• Inspect hook and latch periodically. If the hook or latch is damaged or if the latch fails to interlock with the tip, the hook should be removed from service
• Do not exceed the working load limit
• Do not use if the hook is visibly distorted, damaged or worn
• Keep body and other objects clear of the latch when closing to avoid the pinch point
• Do not side load or tip load hook
CAUTION: Do not exceed working load limits.
Technical Specifications
| Item#: | 1429762 |
|---|---|
| Manufacturer Model #: | M616015 |
| Type | Clevlok Style Latchlok Hook |
| Grade | 100 |
| Chain Size | 1/2 " |
| Working Load Limit | 15,000 lb |
| Material | Alloy Steel |
| Color | Orange Powder Coated |
| Dimension D | 6.26 " |
| Dimension F | 2.91 " |
| Dimension G | 8.96 " |
| Dimension H | 0.59 " |
| Dimension J | 1.50 " |
| Dimension K | 1.46 " |
| Dimension L | 0.63 " |
| Dimension M | 7.88 " |
| Dimension P | 1.58 " |
| UNSPSC #: | 31162605 |
| TAA Compliant: | Yes |
| Weight: | 9.23 lb |
