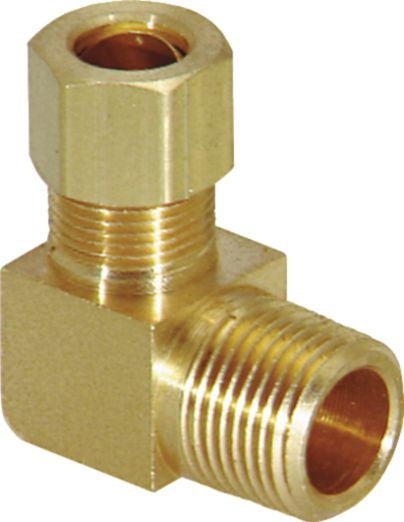

Compression Elbow, Brass, 90°, 1/8-27 x 5/16", Male NPT x Tube, 500PSI
(Pack of
5)
SKU:5083 Item#: 5083
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas
• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping
• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)
• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing
• Temperature range: –65°F to +250°F (–54°C to +121°C)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Forged Body Ball Valve Brass 1/2-14 x 1/2-14
$0.00
Couldn't load pickup availability
Compression Nut Brass 1/4"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
$0.00
Couldn't load pickup availability
Product Description
• UL (No. AU 1042) approved for hazardous liquid, fuel equipment and gas• Meets SAE hydraulic tube fittings standards as well as ASA and ASME codes for pressure piping
• Compatible tubing: Copper, brass, aluminum and plastic (soft plastic tubing requires support inside)
• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing; 1,000 PSI on 5/16" to 1/2" tubing; 750 PSI on 3/4" and 1" tubing
• Temperature range: –65°F to +250°F (–54°C to +121°C)
Technical Specifications
| Item#: | 5083 |
|---|---|
| Fitting Type | Compression |
| Angle | 90 ° |
| Configuration | Elbow |
| Material | Brass |
| Connection Type A x B | Male NPT x Tube |
| Fitting Dimension A | 1/8-27 |
| Fitting Dimension B | 5/16 " |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | No |
| Weight: | 0.26 lb |
