Home Brass Compression Self-Align Elbow Brass 1/8-27 x 1/4"
Brass

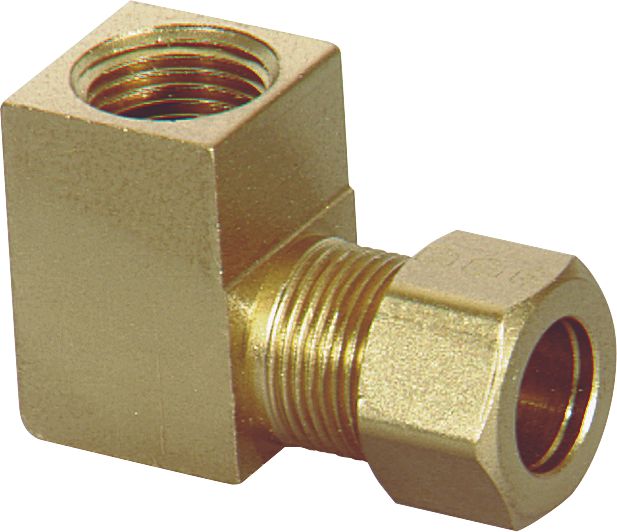

Compression Self-Align Elbow, Brass, 1/8-27 x 1/4", Female NPT x Tube, 500PSI
(Pack of 5)

Item#: 54779

Lawson

• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems

Read More
Check Availability

Frequently Bought Together


Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18

Item#: 5327

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

Pipe Street Elbow Brass 45° 1/4-18 x 1/4-18

Item#: 5313

Pipe Adapter Brass 3/8-18 x 3/8-18

Item#: 5278

Pipe Tee Brass 3/8-18 x 3/8-18 x 3/8-18

Item#: 5327

Hex Head Plug Brass 3/8-18 Male NPT

Item#: 5364

Slotted Hex Head Hose Clamp 301 SS 3/8 to 7/8"

Item#: P28910M01

FLEXAIR 3/8" I.D. x 50' air hose

Item#: 1585091

DOT Connector Male Brass 1/4 x 1/8-27

Item#: 57504

Bumper Cover Push-Type Retainer Nylon 18mm

Item#: 1579409

Shield Push-Type Retainer with Metal Insert

Item#: P85253

Rocker Panel Molding Clip Nylon White 12 x 20mm

Item#: P85316

Product Description

• Compatible tubing: Copper, brass, aluminum and plastic. Not recommended for steel tubing. Soft plastic tubing requires support inside• Pressure: Up to 2,000 PSI on 1/8" to 1/4" tubing, 1,000 PSI on 5/16" to 1/2" tubing and 750 PSI on 3/4" tubing• Temperature range: –65°F to +250°F (–54°C to +121°C)
• Applications: Instrumentation, water, air and lubrication systems

Technical Specifications

Item#: 54779
Fitting Type Compression Selfalign
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Female NPT x Tube
Fitting Dimension A 1/8-27
Fitting Dimension B 1/4 "
Working Pressure 500 PSI
Temperature Range -65 to 250 F
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.44 lb
