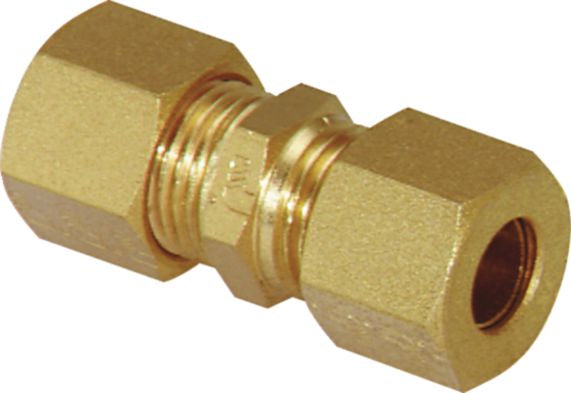

Compression Union, Brass, 4 x 4", Tube x Tube, 500PSI
(Pack of
5)
SKU:51056 Item#: 51056
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI
• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Branch Tee SAE 45° Flare 1/2 x 1/2 x 3/8-18
Couldn't load pickup availability
Compression Self-Align Connector 1/8-27 x 5/16"
Couldn't load pickup availability
Elbow Brass Inverted Flare 45° 1/8-27 x 1/4"
Couldn't load pickup availability
Copper Extended Coupling, No Stop, 2" x 2"
Couldn't load pickup availability
Copper Coupling, 3" x 3"
Couldn't load pickup availability
Copper No Stop Coupling, 1-1/2" x 1-1/2"
Couldn't load pickup availability
Pipe Street Elbow Brass 90° 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Nipple Brass 1/4-18 x 1/4-18
Couldn't load pickup availability
Pipe Hex Nipple Brass 3/8-18 x 3/8-18
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Product Description
• All components conform to at least one of the following standards: ISO, CETOP, AFNOR, BNA, CNOMO• Temperature ranges: –65°F to +250°F (–54°C to +121°C) for copper, brass, aluminum and thin-walled steel tubing; 5°F to 160°F (–15°C to +71°C) for nylon tubing• Please refer to our Product Manual for specific pressure ratings. Examples: 4mm copper tubing – 2,100 PSI; 12mm copper tubing – 500 PSI; 4mm nylon tubing at 70°F (21°C) – 360 PSI; 12mm nylon tubing at 70°F (21°C) – 175 PSI• Applications: Air, water, fuel oil, hydraulic oils, hydrocarbon and many other fluids• Compatible tubing: Copper, brass, aluminum, plastic and thin-walled steel tubing (plastic tubing requires a tube support. Thin-walled steel tubing requires the use of a steel nut and sleeve)
Technical Specifications
| Item#: | 51056 |
|---|---|
| Fitting Type | Compression |
| Configuration | Union |
| Material | Brass |
| Connection Type A x B | Tube x Tube |
| Fitting Dimension A | 4 mm |
| Fitting Dimension B | 4 mm |
| Working Pressure | 500 PSI |
| Temperature Range | -65 to 250 F |
| UNSPSC #: | 40170000 |
| TAA Compliant: | Yes |
| Weight: | 0.21 lb |
