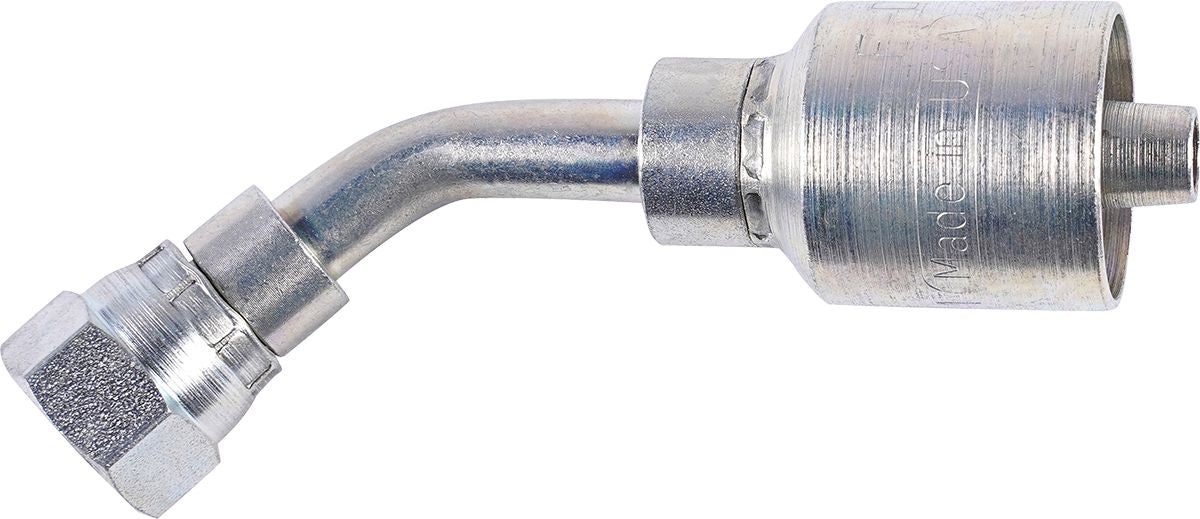

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Light, 45° Bend Female Swivel, 5/8" (-10) Hose x M26 X 1.5
(Pack of
1)
SKU:DY54261107 Item#: DY54261107
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
GlobalSpiral Coupler, JIC 37 Deg Flare 734729245
Item#: 1644494
$0.00
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 1.39" x 200'
Item#: 1562953A
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Item#: KT11961
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 15mm
Item#: 1372010
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54261107 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 5/8 (-10) " |
| Dash Size | -10 |
| Gender | Female |
| Fitting End Style | DIN 24 Degree Flare - Light Pattern |
| Fitting End Type | Swivel |
| Fitting Angle | 45 ° |
| Fitting Dimension B (Working End) | M26 x 1.5 |
| Fitting Series | W |
| O.D. Tube Size 1 | 18 mm |
| Size | (-10)XM26x1.5 |
| Hex Size | 1-1/4 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.75 lb |
