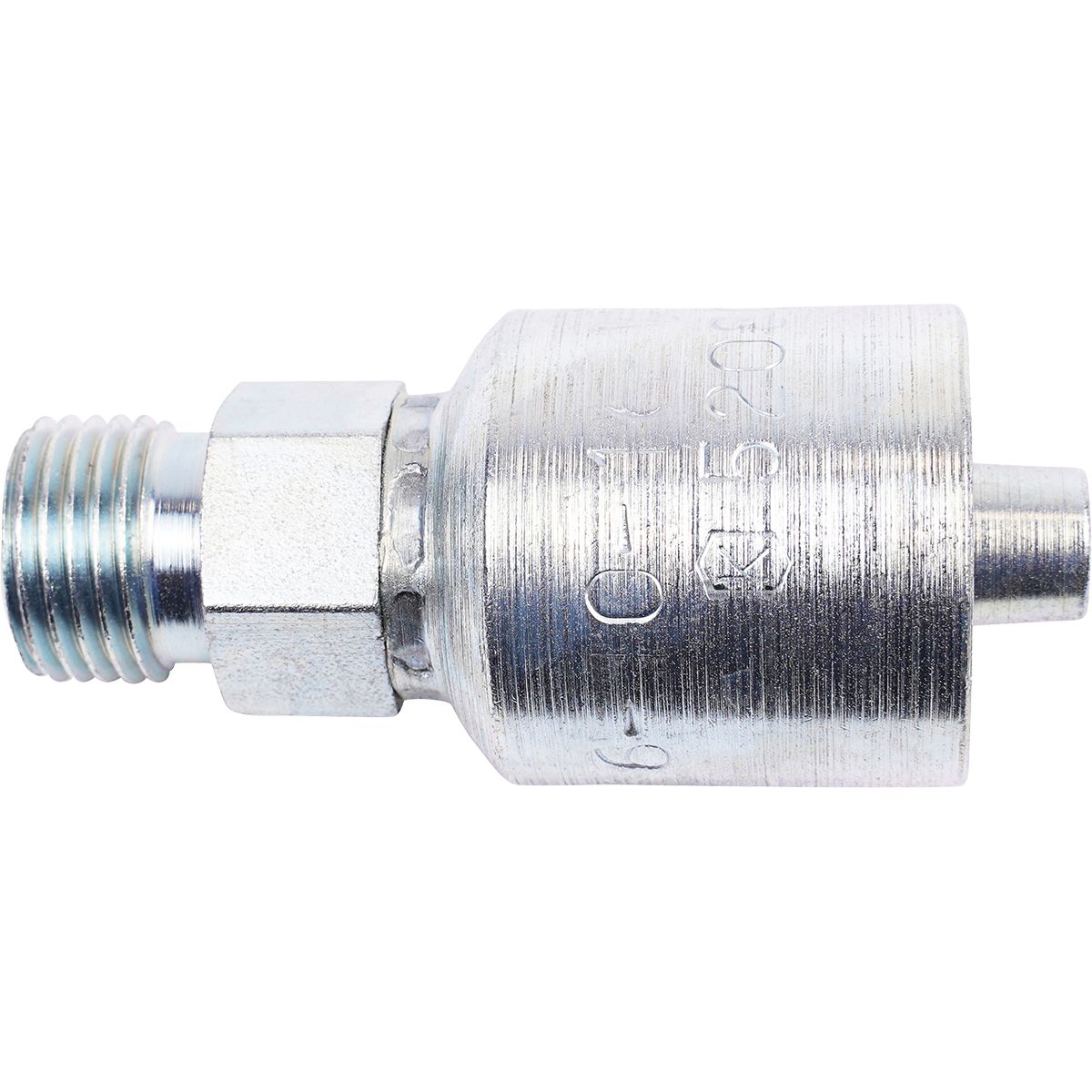

KURT Hydraulics W Carbon Steel Crimp-On Coupling DIN Light, Male Rigid, 3/8" (-6) Hose x M16 X 1.5
(Pack of
1)
SKU:DY54261076 Item#: DY54261076
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH
• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Power Crimp Coupler, Ferrule 726607825
$0.00
Couldn't load pickup availability
GlobalSpiral Coupler, O-Ring Face Seal 734723825
$0.00
Couldn't load pickup availability
Spiral Stainless Steel Coupler, O-Ring Face Seal 736203275
$0.00
Couldn't load pickup availability
Spacer Ring Black/White
$0.00
Couldn't load pickup availability
Industrial O-Ring Buna-N 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
$0.00
Couldn't load pickup availability
DOT Connector Male Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Silicone Coolant/Heater Hose Clamp 9/16 to 1-1/16"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
Rocker Door and Exterior Molding Retainer
$0.00
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Product Description
• Recommended hose to be used with this style of couplings are: SAE 100 R1SN, SAE 100 R2SN, SAE 100 R16S, SAE 100 R17, Kurt Tuff Hose, SAE 100 R12, SAE 100 R13, SAE 100 R4, E-Z Bend 4SK, and 4SH• Kurt Hydraulics Wire style hose couplings are available with many different end configurations Including SAE and Metric.
Technical Specifications
| Item#: | DY54261076 |
|---|---|
| Attachment Method | Crimp-On |
| Fitting Dimension A (Hose) | 3/8 (-6) " |
| Dash Size | -6 |
| Gender | Male |
| Fitting End Style | DIN 24 Degree Flare - Light Pattern |
| Fitting End Type | Rigid |
| Fitting Angle | Straight |
| Fitting Dimension B (Working End) | M16 x 1.5 |
| Fitting Series | W |
| O.D. Tube Size 1 | 10 mm |
| Size | (-6)XM16x1.5 |
| Hex Size | 11/16 " |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | No |
| Weight: | 0.15 lb |
