Home Bolts DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
Bolts

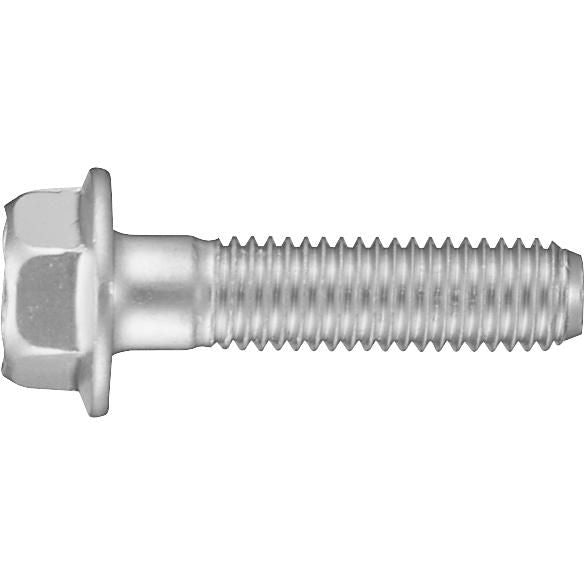

DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 16mm
(Pack of 10)

Kent Automotive

Metric Hex Head Fasteners
• Less surface pressure due to large bearing area
• Allows for a wider tolerance on the clearance hole
• Less setting of the material being clamped
• No flat washers needed
• Tensile strength 800 MPa (116,000 PSI)

Read More
Check Availability

California Proposition 65: Not Applicable
www.P65Warnings.ca.gov

Catalog page#: 11-40

Frequently Bought Together


Hex Flange Bolt Grade 10.9 M10-1.25 x 45mm

Item#: 28695

Hex Flange Bolt Grade 10.9 M6-1 x 45mm

Item#: 28685

Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm

Item#: 28696

Hex Flange Bolt Grade 10.9 M8-1.25 x 35mm

Item#: 28688

Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm

Item#: 28693

Hex Flange Nut Grade 8 Steel M8-1.25

Item#: 57129

Hex Flange Bolt Grade 10.9 M10-1.25 x 50mm

Item#: 28696

Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm

Item#: 55605

Hex Flange Bolt Grade 10.9 M10-1.25 x 16mm

Item#: 55606

Nylon Cable Tie 15-1/4" Black

Item#: P60477

Cowl Bumper Fender Liner/Engine Under Cover Rivet

Item#: P86111

Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Product Description

Metric Hex Head Fasteners
• Less surface pressure due to large bearing area
• Allows for a wider tolerance on the clearance hole
• Less setting of the material being clamped
• No flat washers needed
• Tensile strength 800 MPa (116,000 PSI)

Technical Specifications

Item#: 59411
Type Hex Flange Bolt
Diameter M8
Thread Pitch 1.25 mm
Thread Coarse
Length 16 mm
Finish Bright Zinc
Material Carbon Steel
Grade 8.8
Flange Diameter 18 mm
Head Style Hex Flange
Size M8X16 mm
Across Flats 13 mm
Specifications DIN 6921
Tensile Strength 830 MPa
UNSPSC #: 31161620
TAA Compliant: No
Weight: 0.27 lb
