Home Brass Dubl-Barb Elbow Brass 90° 1/2 x 1/2"
Brass

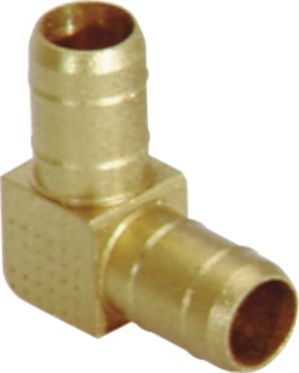

Dubl-Barb Elbow, Brass, 90°, 1/2" x 1/2", Tube x Tube, 100PSI
(Pack of 10)

Item#: 86705

Lawson

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Pipe Adapter Brass 1/4-18 x 3/8-18

Item#: 5280

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291

Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289

Pipe Branch Tee Brass 1/8-27 x 1/8-27 x 1/8-27

Item#: 5323

Pipe Adapter Brass 1/4-18 x 3/8-18

Item#: 5280

Pipe Coupling Brass 1/2-14 x 1/2-14

Item#: 5291

Push-Button Air Coupler Steel 1/4" x 1/4-18

Item#: 64497

Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"

Item#: P28920M01

Miniature Clamp SS 3/16 to 5/8"

Item#: P63858M01

Bumper Fascia General Purpose Split Rivet 3/16"

Item#: KT13747

Fender Splash Shield Push Rivet Nylon 7mm Hole

Item#: KT14296

Specialty Rivet with Plastic Cap Aluminum 3.2mm

Item#: KT13763

Product Description

• Fittings grip as tubing is moved
• Pressure: Up to 150 PSI on 5/32" to 3/8" tubing; up to 100 PSI on 1/2" tubing
• Temperature ranges: –65°F to +90°F (–54°C to +32°C) for 5/32", 1/4" and 3/8" tubing; –65°F to +75°F (–54°C to +24°C) for 1/2" tubing
• Use with polyethylene tubing
• Can be used with environmental control systems

Technical Specifications

Item#: 86705
Fitting Type Dubl-Barb
Angle 90 °
Configuration Elbow
Material Brass
Connection Type A x B Tube x Tube
Fitting Dimension A 1/2 "
Fitting Dimension B 1/2 "
Tube Inside Diameter B 3/8 "
Tube Inside Diameter A 3/8 "
Working Pressure 100 PSI
Temperature Range -65 to 75 F
Length 1-1/64 "
UNSPSC #: 40170000
TAA Compliant: Yes
Weight: 0.32 lb

Product Restrictions

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
