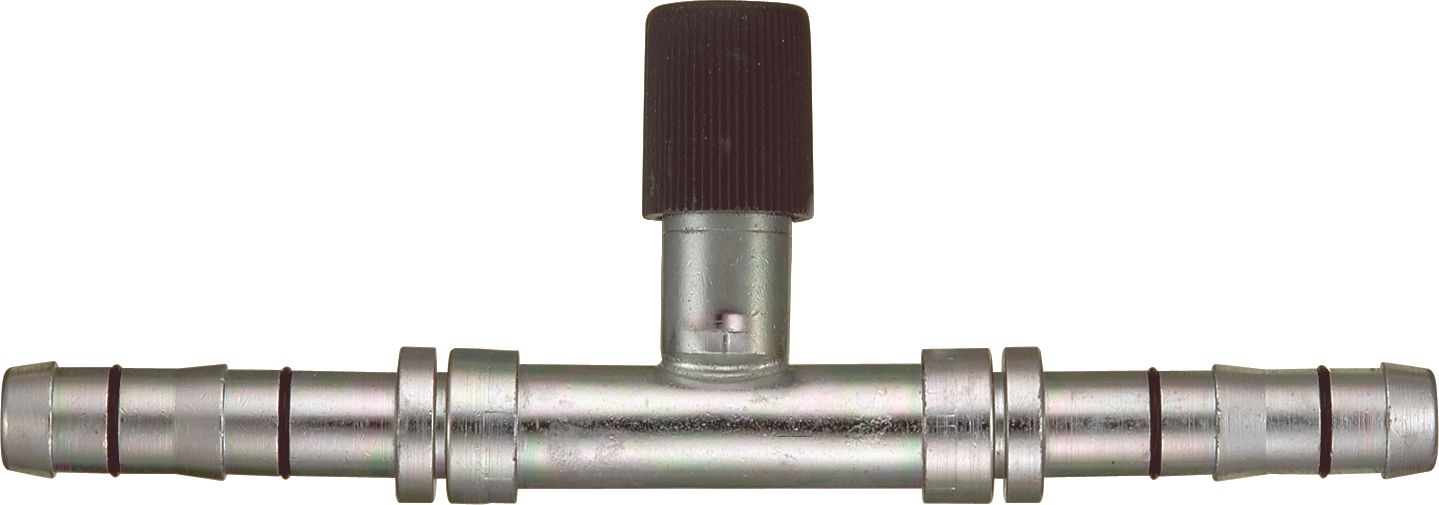

E-Z Clip Series Hydraulic Field Attachable Splicer, Straight, Carbon Steel, 1/2 (-10) x 1/2 (-10)
(Pack of
1)
SKU:17512 Item#: 17512
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)
Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Frequently Bought Together
06Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
$0.00
Couldn't load pickup availability
08Z-BC68- Hose End (perm) 1S/1R 90 D Male STC
$0.00
Couldn't load pickup availability
06Z-BC46- Hose End (perm) 1S/1R 45 D Male STC
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Product Description
• Make your own hose assemblies in minutes• Reduce downtime and increase productivity• Does not require hose-crimping machinery• Typical applications include: Truck and bus fleets, construction equipment, military vehicles, agricultural equipment, refrigerated trucks (dairy and produce)Use with GH001 Multi-Refrigerant Hose
Assembly InstructionsStep 1: Cut the hose. Be sure the cut is made square to the hose length.Step 2: Slip on two clips.Step 3: Oil the nipple. This MUST be done to lower the force of nipple insertion.Step 4: Insert the nipple into the hose. Be sure to wipe excess oil from the nipple and hose.Step 5: Snap the cage into the groove on the nipple.Step 6: Slide the clips over the cage arms and into the channels on each arm.Step 7: Close the clips.E-Z Clip® – Completed assembly.
NOTE: Pilot O-rings are not included and must be purchased separately.
CAUTION: Failure to follow these instructions and/or the use of Weatherhead® hose with fittings supplied by other manufacturers may result in unreliable and unsafe hose assemblies, which may result in sudden or unintended escape of refrigerant gases. Personal injury and/or violations of the EPA regulations may occur as a consequence.Eaton recommends adherence to all guidelines, including EPA guidelines, concerning the services of refrigerant systems.
Technical Specifications
| Item#: | 17512 |
|---|---|
| Manufacturer Model #: | FJ5986-1010S |
| Manufacturer Series Number | E-Z Clip Series |
| Attachment Method | Field Attachable |
| Fitting Dimension A (Hose) | 1/2 (-10) " |
| Dash Size | -10 |
| Gender | Splicer |
| Fitting End Style | Splicer |
| Fitting Angle | Straight |
| Fitting Drop Length | with R134a Low Side Port |
| Fitting Dimension B (Working End) | 1/2 (-10) |
| Weatherhead No. | FJ5986-1010S |
| Thread Size | 1/2 (-10) |
| Size | (-10)X(-10) |
| Material | Carbon Steel |
| UNSPSC #: | 27121700 |
| TAA Compliant: | Yes |
| Weight: | 0.27 lb |
