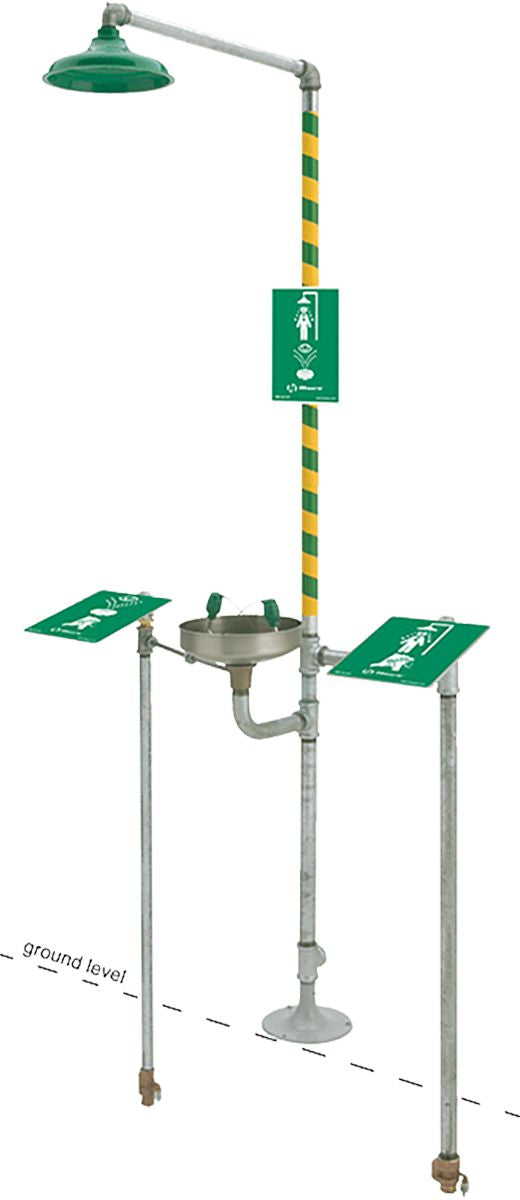

Emergency Freeze Protected Shower and Eyewash Station, Floor Mount, Plastic, Stainless/Galvanized Steel, 20 gpm Flow Rate, 11 in. Bowl, Silver/Green,/Yellow
(Pack of
1)
SKU:1648001 Item#: 1648001
A freeze protected combination shower and eyewash including a showerhead with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24"and 42" depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 3/4" NPT and 1-1/4" NPT inlet, and 1-1/4" NPT outlet
• Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, entire unit is pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6 * * *
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Axion MSR Emergency Shower and Eye/Face Wash
$0.00
Couldn't load pickup availability
Axion MSR Emergency Shower and Eye/Face Wash
$0.00
Couldn't load pickup availability
Axion MSR Emergency Drench Shower
$0.00
Couldn't load pickup availability
Emergency Eyewash Station Concentrate Additive, 8oz Bottle, Maintain Every 90 Days
$0.00
Couldn't load pickup availability
Quick-Pour Eyewash Refill, 32 oz Bottle, For Use With 01022 And 01023 Eyewash Station
$0.00
Couldn't load pickup availability
Emergency Eyewash Station Tank Cover for 12 Gal Eyewash Tank, Clear, Plastic, Hook and Loop Closure
$0.00
Couldn't load pickup availability
Anti-Rattle/Squeak BRS Tape 30mm x 10'
$0.00
Couldn't load pickup availability
Universal High-Visibility Sorbent Pad
$0.00
Couldn't load pickup availability
Butyl Windshield Tape 3/8" x 15'
$0.00
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Medium, 100/Box
$0.00
Couldn't load pickup availability
Wyper Super Prep Towel 9 x 14"
$0.00
Couldn't load pickup availability
Premium Nitrile Gloves, Black, 6 Mil, Medium, 1,000/Case
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
A freeze protected combination shower and eyewash including a showerhead with integral self-regulating 20 gpm flow control, stainless steel 11" round bowl, stainless steel eyewash yoke assembly with Soft-Flo ABS plastic eyewash anti-surge heads with integral flow controls and dust covers, two self-draining bury valves with available frost-line depths of 24"and 42" depths, two large zinc-plated steel push plates with universal graphics, powder-coated cast-iron 9" (22.9 cm) diameter floor flange, universal sign, 3/4" NPT and 1-1/4" NPT inlet, and 1-1/4" NPT outlet• Perfect for extreme weather conditions dropping down to -30° F (-34.4° C)
• Eyewash streams provide Zero Vertical Velocity™ stream engineering with even laminar flow for enhanced comfort, stability and effectiveness
• Universal design allows for top or bottom water supply
• Requires minimal maintenance and is equipped with test card to record weekly testing
• Reducing installation time, entire unit is pre-built and fully pressure tested
• Solid stainless steel pipe stanchion and galvanized fittings make for one sturdy piece of corrosive resistant equipment
• Rated Class 1, Div 2, Group B, C & D. Temperature code T6 * * *
Technical Specifications
| Item#: | 1648001 |
|---|---|
| Manufacturer Model #: | 8300FP |
| Type | Drench Shower - Freeze Protected |
| Color | Silver/Green/Yellow |
| Style | With Eyewash Station |
| Material | Galvanized Steel, Stainless Steel, Plastic |
| Description | Shower with Eye Wash Station |
| UNSPSC #: | 46181810 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
