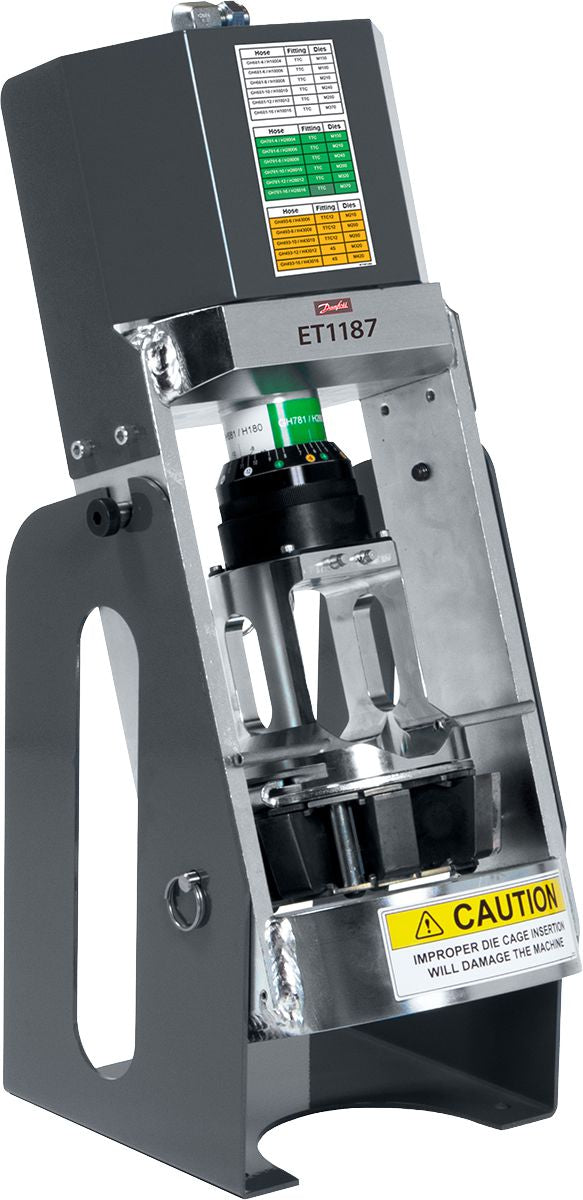

ET1187 Portable Variable Crimp Machine - Bench Mount only, no pump
(Pack of
1)
SKU:1588245 Item#: 1588245
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.
• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Frequently Bought Together
Spacer Ring Red
$0.00
Couldn't load pickup availability
Spacer Ring Yellow/White
$0.00
Couldn't load pickup availability
Spacer Ring Orange/White
$0.00
Couldn't load pickup availability
Industrial O-Ring Viton 5-1/8 x 5-3/8 x 1/8"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 3/8 x 1/2 x 1/16"
$0.00
Couldn't load pickup availability
Industrial O-Ring Nitrile 7/32 x 11/32 x 1/16"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 1-1/16 to 2"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
The ET1187 crimper is Eaton's most economical variable crimper to date. It boasts a broad crimping capability with a new "ease-of-use" that is sure to excite hose assemblers in the field.• Overall press capacity of up to 1-1/4" (-20) for braided hose and up to 1" (-16) for spiral hose
• Type: Variable
• Size: 9"W x 22"H x 11"D
• Weight: 65 lbs.
The ET1187 crimper is designed to easily adjust to the Aeroquip™ and Weatherhead® core products. It’s as simple as turning the collar to the correct color to match the layline on the hose. Adjust the ring so that the correct size dot aligns with the correct size line on the collar and the machine is set for the correct crimp. Load the correct crimp die based on the crimp die chart attached to the machine, and the machine is ready to crimp.
Technical Specifications
| Item#: | 1588245 |
|---|---|
| Manufacturer Model #: | ET1187-001 |
| Description | ET1187 Variable Bench Mount Crimper Only |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 27121500 |
| TAA Compliant: | No |
| Weight: | 75.0 lb |
