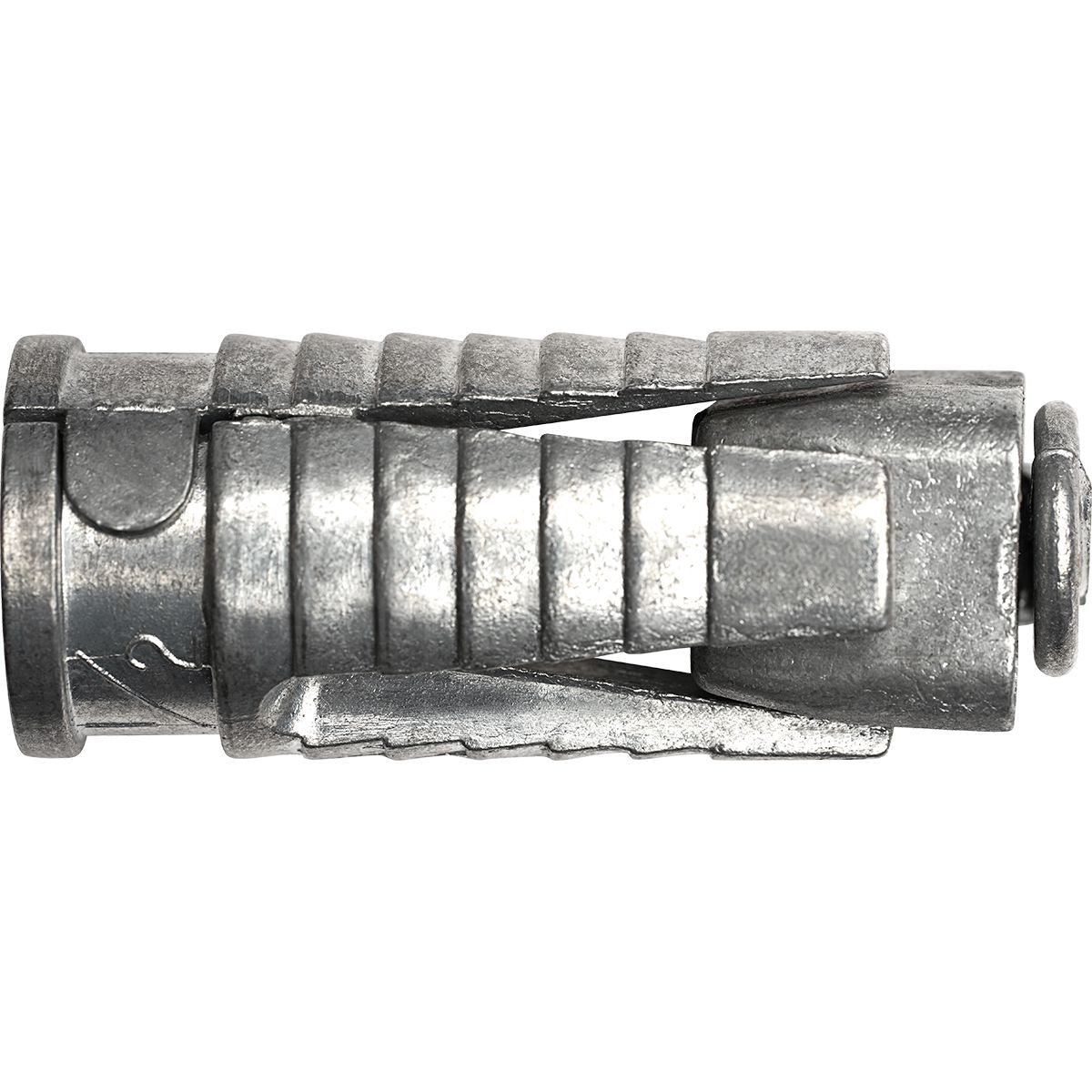

Expansion Shield Anchor, 7/8" Drill Size, 1/2"
(Pack of
5)
• Evenly distributed four-way expansion of anchor wall by internal nut
• Excellent holding power in concrete, brick, stone and cinder block
• Corrosion-resistant, non-deteriorating zinc alloy casting bends and conforms without fracturing
• Meets GSA Specification FF-S-325 3.2.2.2.1.3
• Use for anchoring medium and heavy loads in solid and hollow-base materials
• Typical applications: Guard rails, fascia, equipment hangers, straps, conduit, overhead plumbing installations and suspended heating and air conditioning ductwork
1. Drill hole to at least shield length.
2. Clean hole with air or wet swab.
3. Place Forway® Expansion Shield in the hole.
4. Position fixture or equipment.
5. Insert screw or bolt through equipment into shield and tighten.
NOTE: Screws not included.
Forway® is a registered trademark of U.S.E. Diamond, Inc.
Tensile strength, shear strength and tensile block values shown; a 4:1 safety factor is recommended.
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Toggle Bolt Anchor Assortment 70Pcs
Couldn't load pickup availability
Drill 'N Drive Masonry Anchor Assortment 283Pcs
Couldn't load pickup availability
Standard Self-Drilling Wallboard Anchor Kit 41Pcs
Couldn't load pickup availability
Security Anchor Steel 1/2 x 2-3/4"
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 3/8 x 5"
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 1/2 x 6"
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 20mm
Couldn't load pickup availability
Serrated Hex Flange Nut Alloy Steel M6-1
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
Couldn't load pickup availability
Acrysol Auto Body Degreaser 16oz
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Product Description
• Evenly distributed four-way expansion of anchor wall by internal nut• Excellent holding power in concrete, brick, stone and cinder block
• Corrosion-resistant, non-deteriorating zinc alloy casting bends and conforms without fracturing
• Meets GSA Specification FF-S-325 3.2.2.2.1.3
• Use for anchoring medium and heavy loads in solid and hollow-base materials
• Typical applications: Guard rails, fascia, equipment hangers, straps, conduit, overhead plumbing installations and suspended heating and air conditioning ductwork
1. Drill hole to at least shield length.
2. Clean hole with air or wet swab.
3. Place Forway® Expansion Shield in the hole.
4. Position fixture or equipment.
5. Insert screw or bolt through equipment into shield and tighten.
NOTE: Screws not included.
Forway® is a registered trademark of U.S.E. Diamond, Inc.
Tensile strength, shear strength and tensile block values shown; a 4:1 safety factor is recommended.
Technical Specifications
| Item#: | 96961 |
|---|---|
| Anchor Size | 1/2 " |
| Type | Forway Expansion Shield Anchor |
| Drill Size | 7/8 " |
| 3,000 PSI Concrete Shear Strength | 8,100 lb |
| Tensile Block | 3,050 lb |
| Thread Pitch | 13 |
| 3,000 PSI Concrete Tensile Strength | 5,100 lb |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 0.8 lb |
