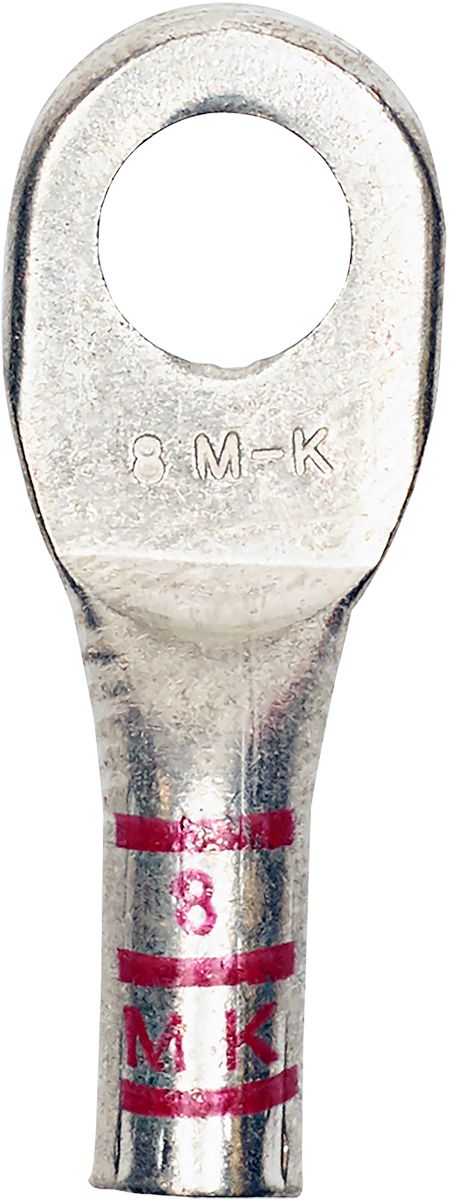

Extreme-Duty Battery Cable Lug, 8 AWG, Red, 5/16" Stud Size, Copper, Electro-Tin Plated, Long Barrel End
(Pack of
5)
SKU:16218 Item#: 16218
• Heavy-duty wall thickness is approximately 20% thicker and matches battery terminals
• Long barrel design yields greater amperage capacity and conductivity for maximum cold-cranking force
• Made from 99.9% copper for maximum conductivity
• Electro-tin-plated for industrial-strength corrosion resistance
• Color-coded crimp lines designate where to crimp and what color crimp die to use (same as battery terminals)
• Chamfered barrel allows cable to enter barrel easily without strand hang-ups
Frequently Bought Together
Heavy-Duty Battery Cable Butt Connector 1/0 AWG
$0.00
Couldn't load pickup availability
Dual-Lok Battery Cable Butt Connector 8 AWG
$0.00
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 6 AWG Blue 1/4"
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
$0.00
Couldn't load pickup availability
180-degree Wide Beam Head Light with Side Light
$0.00
Couldn't load pickup availability
Battery Terminal 6-2/0 AWG Universal
$0.00
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2/0 AWG Black 5/16"
$0.00
Couldn't load pickup availability
Heavy-Duty Battery Cable Lug 2 AWG Brown 5/16"
$0.00
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
$0.00
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Bumper Clip Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Product Description
• Heavy-duty wall thickness is approximately 20% thicker and matches battery terminals• Long barrel design yields greater amperage capacity and conductivity for maximum cold-cranking force
• Made from 99.9% copper for maximum conductivity
• Electro-tin-plated for industrial-strength corrosion resistance
• Color-coded crimp lines designate where to crimp and what color crimp die to use (same as battery terminals)
• Chamfered barrel allows cable to enter barrel easily without strand hang-ups
Technical Specifications
| Item#: | 16218 |
|---|---|
| Style | Extreme-Duty Tru-Crimp |
| Cable Gauge | 8 AWG |
| Stud Size | 5/16 " |
| Color | Red |
| Plating | Tin |
| Approvals | UL Listed / CSA Certified |
| Type | Battery Cable Lugs |
| UNSPSC #: | 39121454 |
| TAA Compliant: | No |
| Weight: | 0.08 lb |
