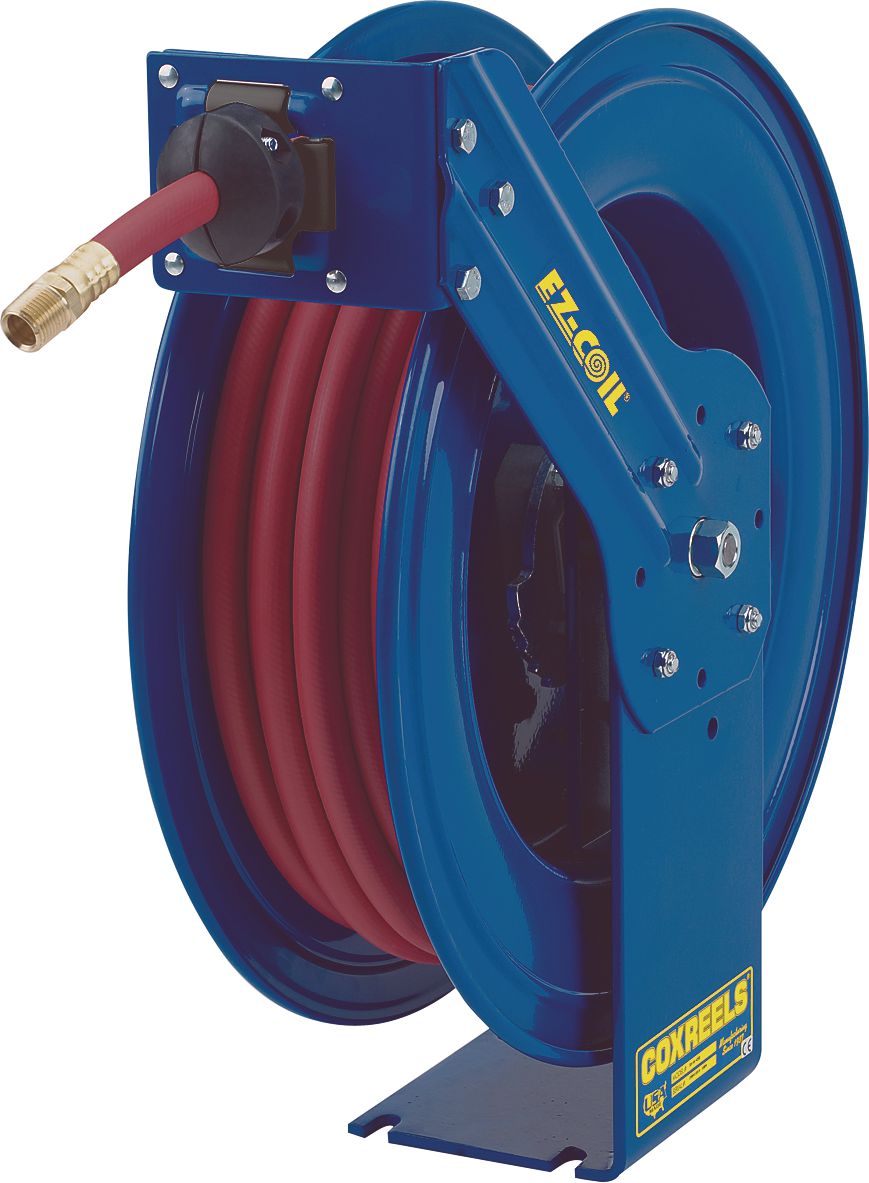

EZ-Coil Truck-Mount Air Hose Reel, Double Axle Support to Center Shaft, 300PSI, 82lbs, 3/8" x 75'
(Pack of
1)
SKU:20781 Item#: 20781
EZ-Coil® Patented Safety Recoil Mechanism
• Retracts hose at rates up to 80% slower than conventional reels
• Significantly reduces potential for hose whip injuries and damage
Super Hub™ Axle Support System Features
• Double axle support to center shaft
• 1" solid steel axle with lubricated precision bearings
• Increased stability during operation for reduced vibration and higher reel strength
Truck-Mounted Reels
• Super Hub™-equipped with triple axle support to center shaft
• 1" solid steel axle with lubricated precision bearings
• Increased stability during operation for reduced vibration and higher reel strength
Standard Features
• Compact design
• Heavy gauge 1/4" steel base and support post
• Factory matched cartridge style spring motor
• Brass NPT swivel inlet machined from solid brass
• Nitrile swivel seals
• 1" solid steel axle with lubricated precision bearings
• High-quality air hose provided (unless otherwise specified)
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 10-32
Frequently Bought Together
Rubber Air Hose Reel Dual Arm Assembly 3/8" x 100'
$0.00
Couldn't load pickup availability
180° Hose Reel Swivel Mount HRS180
$0.00
Couldn't load pickup availability
BluShield Steel A Frame 150' Pressure Washer Hose Reel
$0.00
Couldn't load pickup availability
Avagard Rubber Air Hose Assembly 3/8" x 50'
$0.00
Couldn't load pickup availability
Lead-in Hose Assembly 3/8" Blue
$0.00
Couldn't load pickup availability
FLEXAIR 1/4" I.D. x 50' air hose assembly w/ High Flow safety coupler
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 9/16 to 1-1/4"
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Rubber Air Hose Reel Dual Arm Assembly 3/8" x 100'
$0.00
Couldn't load pickup availability
180° Hose Reel Swivel Mount HRS180
$0.00
Couldn't load pickup availability
BluShield Steel A Frame 150' Pressure Washer Hose Reel
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
EZ-Coil® Patented Safety Recoil Mechanism• Retracts hose at rates up to 80% slower than conventional reels
• Significantly reduces potential for hose whip injuries and damage
Super Hub™ Axle Support System Features
• Double axle support to center shaft
• 1" solid steel axle with lubricated precision bearings
• Increased stability during operation for reduced vibration and higher reel strength
Truck-Mounted Reels
• Super Hub™-equipped with triple axle support to center shaft
• 1" solid steel axle with lubricated precision bearings
• Increased stability during operation for reduced vibration and higher reel strength
Standard Features
• Compact design
• Heavy gauge 1/4" steel base and support post
• Factory matched cartridge style spring motor
• Brass NPT swivel inlet machined from solid brass
• Nitrile swivel seals
• 1" solid steel axle with lubricated precision bearings
• High-quality air hose provided (unless otherwise specified)
Technical Specifications
| Item#: | 20781 |
|---|---|
| Manufacturer Model #: | EZ-TSH-375 |
| Type | Hose Reels - Air/Water |
| Description | EZ-Coil® Truck-Mount Air Hose Reel |
| Category / Performance | Best |
| Size | 3/8X75 |
| Length | 75 ft |
| I.D. | 3/8 " |
| Working Pressure | 300 PSI |
| Cox Part Number | EZ-TSH-375 |
| Weight | 82 lb |
| Quantity Per Package | 1.0000 |
| UNSPSC #: | 40142022 |
| TAA Compliant: | Yes |
| Weight: | 77.0 lb |
