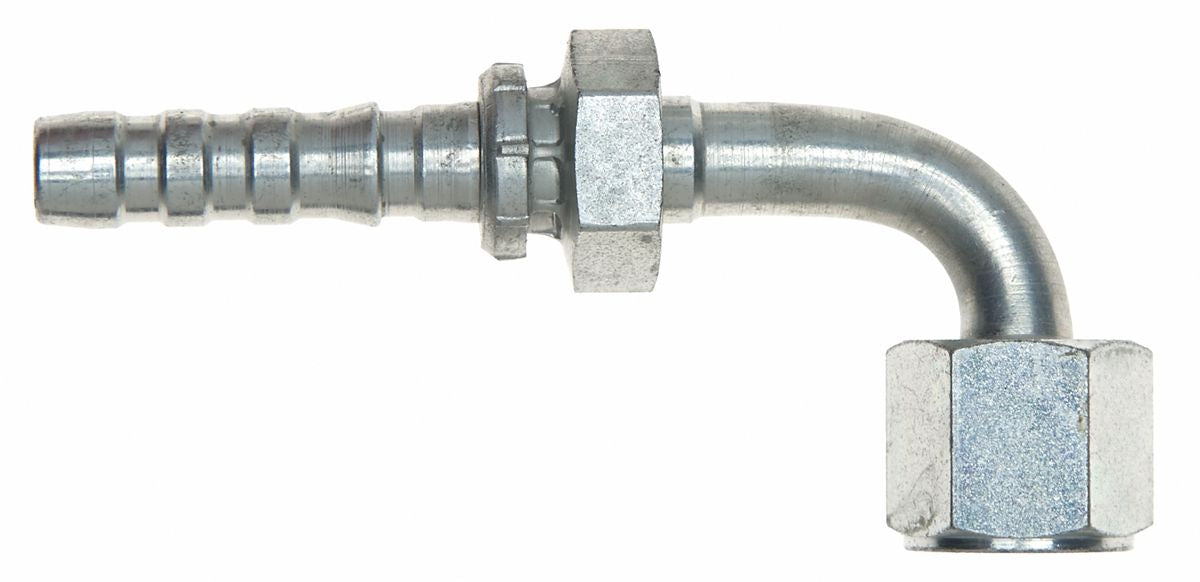

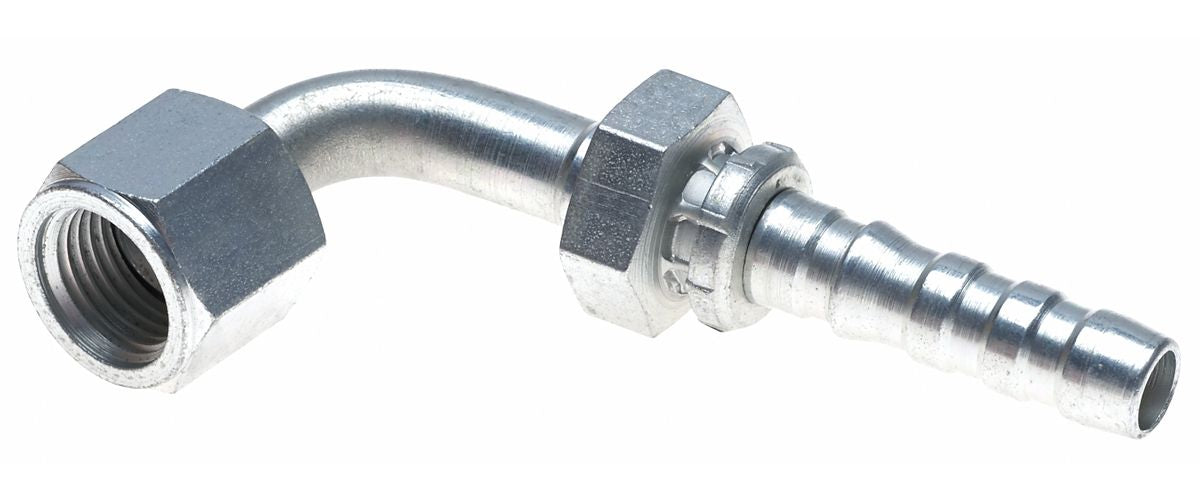

GlobalSpiral Coupler, JIC 37 Deg Flare, Bent Tube Type, 90 Deg, 1/2" (-8) x 3/4-16" (-8), 0.5" Hose I.D., 3.62" Length, Steel, 6000 PSI
(Pack of
1)
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. Coated with TuffCoat™ plating - more than five times better corrosion resistance than SAE ASTMB117 specification.
• Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
• Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
• Surpasses one million impulse cycles
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
PolarSeal AC Coupler, SAE Tube O-Ring Nut 73320425
Couldn't load pickup availability
4T Series Crimp-On Hose End 1/4" x 1/4-18
Couldn't load pickup availability
4T Series Crimp-On Hose End 3/4" x 1-1/16-12
Couldn't load pickup availability
Air Conditioning O-Ring HSN Green
Couldn't load pickup availability
KH Series Crimp-On Coupling 1/2" x 3/4-16
Couldn't load pickup availability
Crimp-On Hose Coupling 1/2" x 1/2-14
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Acrysol Paint Preparation and Auto Body Solvent
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
Product Description
Gates® GlobalSpiral™ couplings provide superior performance for extremely high-pressure, high-impulse spiral-wire hydraulic hose applications. The innovative two-piece, no-skive design allows for fast, tailor-made assemblies. Eliminating the skiving process drastically reduces assembly time, labor, odor, fabrication errors and contamination of the fluid power system. Maximum application coverage - GlobalSpiral™ couplings are available in more than 80 thread configurations, so finding the right fit for your assembly has never been easier. Coated with TuffCoat™ plating - more than five times better corrosion resistance than SAE ASTMB117 specification.• Unique bite-the-wire crimp design allows for improved coupling retention and blow-off prevention
• Reduces parts inventory by 30% since only one stem is required for all spiral-wire hose types
• Surpasses one million impulse cycles
Technical Specifications
| Item#: | 1644498 |
|---|---|
| Fitting Dimension A (Hose) | 0.5 " |
| Dash Size | 8 |
| Fitting End Style | Swivel |
| Fitting End Type | JIC 37° Flare |
| Fitting Angle | 90 ° |
| Fitting Dimension B (Hose) | 1/2 " |
| Thread Size | 3/4-16 " |
| Size | 8 " |
| Material | Steel |
| Finish | TuffCoat™ |
| UNSPSC #: | 31163000 |
| TAA Compliant: | Yes |
