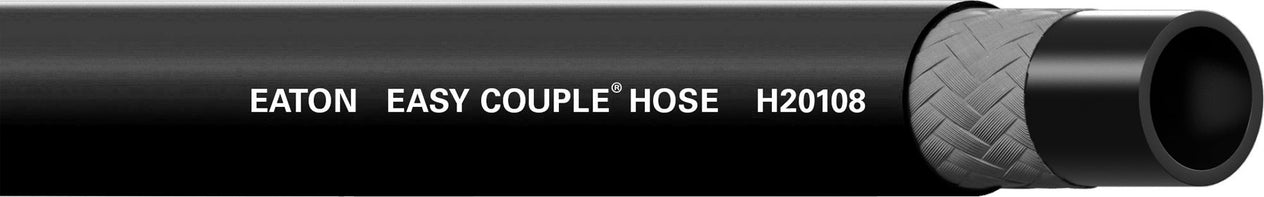

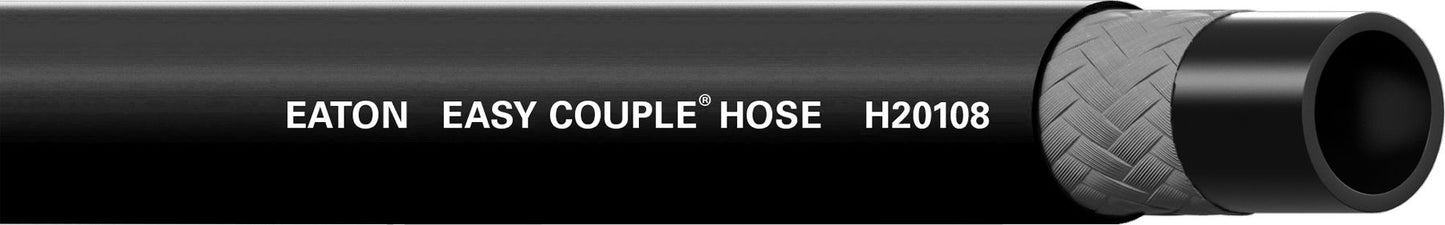

H201 Easy Couple Hose, Nitrile Inner Tube, Synthetic Cover, 1 Fiber Braid Reinforcement, Black, 300PSI, 1/4" x 500'
(Pack of
500)
SKU:1185464 Item#: 1185464
H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.
Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile
Frequently Bought Together
Synthetic Rubber Bar-Lok Cover Hose 1/2" Black
$0.00
Couldn't load pickup availability
H20106BK-100R
$0.00
Couldn't load pickup availability
H10104
$0.00
Couldn't load pickup availability
Lead-in Hose Assembly 3/8" Blue
$0.00
Couldn't load pickup availability
FLEXAIR 1/4" I.D. x 50' air hose assembly w/ High Flow safety coupler
$0.00
Couldn't load pickup availability
Air/Water Hose Assembly 3/8" x 50' Red
$0.00
Couldn't load pickup availability
FLEXAIR 3/8" I.D. x 50' air hose
$0.00
Couldn't load pickup availability
Quick Disconnect Coupler Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Miniature Clamp SS 7/32 to 5/8"
$0.00
Couldn't load pickup availability
Inner Fender Shield Attaching Clip Nylon Black
$0.00
Couldn't load pickup availability
Bumper Drive Rivet Plastic 10mm Hole
$0.00
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Product Description
H201 is compatible with fuel, lubricating oils, air and water. It supports a variety of applications from machine tools to MRO programs. Easy Couple® is a well-engineered hose that provides longer uptime and more profitable, reliable use.Temperature range: –40°F to +212°F (–40°C to 100°C)
Reinforcement: One fiber braid
Cover: Neoprene (black) vinyl nitrile (colored hoses)
Inner tube: Nitrile
Technical Specifications
| Item#: | 1185464 |
|---|---|
| Manufacturer Model #: | H20104BK-500R |
| I.D. | 1/4 " |
| Working Pressure | 300 PSI |
| Burst Pressure | 1,200 PSI |
| Minimum Bend Radius | 3 " |
| Weight (Lbs. / Ft.) | 0.08 |
| Vacuum Rating (Inches of Hg) | 28 |
| UNSPSC #: | 40142009 |
| TAA Compliant: | Yes |
