Home Bolts Hex Cap Screw Grade 5 3/8-16 x 7"
Bolts

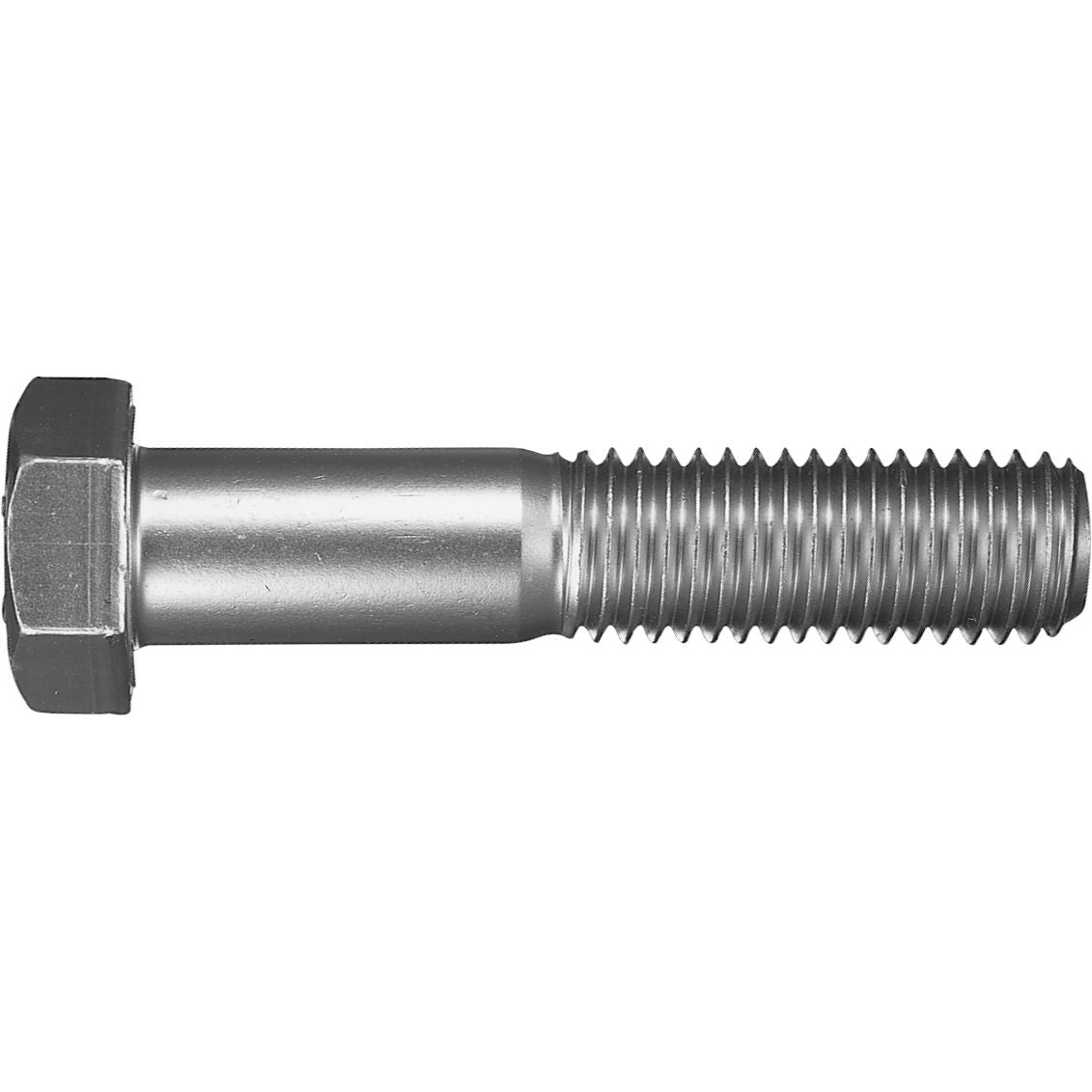

Hex Cap Screw, Grade 5, Steel, Zinc Finish, Coarse Thread, 15/64" Head Height, 9/16" Across Flats, 3/8-16 x 7"
(Pack of 10)

Item#: FA21109

FalconGrip®

• 120,000 PSI minimum tensile strength (SAE Grade 5)
• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1

Read More
Check Availability

Catalog page#: 11-20

Frequently Bought Together


Hex Cap Screw Grade 5 1/4-20 x 1/2"

Item#: FA65000

Hex Flange Bolt Grade 10.9 M10-1.5 x 50mm

Item#: 59746

DIN 6921 Hex Flange Bolt Grade 8.8 M6-1 x 30mm

Item#: 59410

Hex Cap Screw Property Class 8.8 M10-1.5 x 70mm

Item#: 61277

Hex Cap Screw Property Class 8.8 M10-1.5 x 60mm

Item#: 61275

Hex Cap Screw Property Class 8.8 M6-1 x 55mm

Item#: 61266

Hex Nut Grade 8 Steel M12-1.75

Item#: 80250

DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 20mm

Item#: 59412

Sheet Metal Screw Phillips Truss Head #14 x 3/4"

Item#: 59456

Hex Nut Grade 8 Steel 5/16-18

Item#: FA68401

Hex Nut Grade 8 Steel 1/2-13

Item#: FA68404

Hex Flange Nut Grade 8 Steel M10-1.5

Item#: 57130

Miniature Incandescent Bulb 12V 2CP

Item#: P22266

Fender Lining Screw Grommet Nylon #12

Item#: P18348

Push-Type Retainer Nylon 15mm

Item#: 1372010

Product Description

• 120,000 PSI minimum tensile strength (SAE Grade 5)
• Conforms to SAE J429 material and mechanical properties
• High quality
• Available in coarse (UNC) and fine (UNF) thread types
• Product dimensions to ANSI B18.2.1

Technical Specifications

Item#: FA21109
Style Industry Standard
Diameter 3/8 "
Thread Pitch 16
Thread Coarse
Length 7 "
Type Hex Cap Screw
Across Flats 9/16 "
Material Carbon Steel
Grade 5
Finish Bright Zinc
Tensile Strength 120,000 PSI
Head Style Hex
Head Height 15/64 "
Thread Form UNR
Thread Length Partial
Thread Length Minimum 1-1/4 "
UNSPSC #: 31161501
TAA Compliant: Yes
Weight: 2.23 lb
