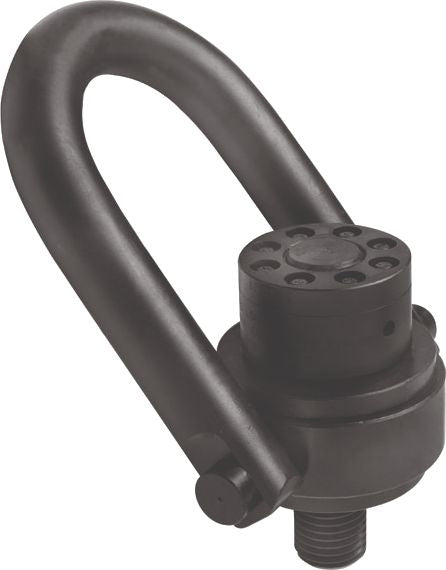

Hoist Ring, EZ-Torque®, Metric, 22,000 kg Load Limit, M64x6.0 Thread Size, 102mm Thread Length
(Pack of
1)
SKU:1423367 Item#: 1423367
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.
• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Frequently Bought Together
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
$0.00
Couldn't load pickup availability
Specialty Rivet with Plastic Cap Aluminum 3.2mm
Item#: KT13763
$0.00
Couldn't load pickup availability
Product Description
EZ-Torque® Hoist Rings eliminate the need of locating and using expensive hydraulic tensioners or torque multipliers when installing high capacity working load hoist rings.For example, a 200,000 lb. WLL Hoist Ring requires the mounting bolt to be torqued to 19,800 lbs-ft. while EZ-Torque® requires only a standard torque wrench and 193 lbs-ft of torque per screw.• Use Hoist Rings for added lifting safety to avoid eyebolt twisting, bending and breaking when lifting heavy, angular, unbalanced loads
Technical Specifications
| Item#: | 1423367 |
|---|---|
| Manufacturer Model #: | 24592 |
| Type | EZ-Torque® |
| Thread Size | M64x6.0 |
| Working Load Limit | 22,000 kg |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 53.9 N·m |
| Dimension A | 76.2 mm |
| Dimension B | 266.7 mm |
| Dimension C | 104.0 mm |
| Dimension D | 57.2 mm |
| Dimension E | 102 mm |
| Dimension F | 428.5 mm |
| Dimension G | M64x6.0 mm |
| Dimension H | 296.4 mm |
| Dimension J | 165.6 mm |
| Dimension K | 146.1 mm |
| Dimension L | 28.4 mm |
| Dimension M | 203.3 mm |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
