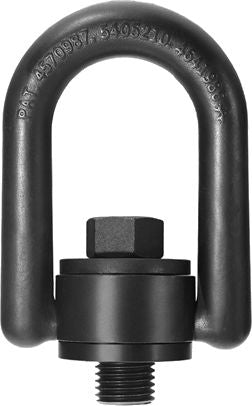

Hoist Ring, Heavy Duty® Road Plate, 10,000 lb Load Limit, 1-1/4-7 Thread Size, 1" Thread Length
(Pack of
1)
SKU:1423431 Item#: 1423431
• Material: High strength 4140 alloy steel
• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
Frequently Bought Together
Bumper Radiator and Grille Drive Rivet 7mm Hole
Item#: P85262
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
Item#: 1468633
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Item#: KT13747
$0.00
Couldn't load pickup availability
Product Description
• Material: High strength 4140 alloy steel• Range of movement: Swivel 360°, Pivot 180° Under Load
• Design Factor: Minimum of 5:1
• Meets manufacturing and design requirements of ASME-B30.26and MIL-STD 209
• Magnetic Particle Inspected Per ASTM 1444
• Black oxide coated
Technical Specifications
| Item#: | 1423431 |
|---|---|
| Manufacturer Model #: | 36660 |
| Type | Road Plate |
| Thread Size | 1-1/4-7 |
| Material | 4140 Alloy Steel |
| Finish | Black Oxide |
| Working Load Limit | 10,000 lb |
| Swivel | 360 ° |
| Pivot | 180 ° |
| Recommended Installation Torque | 230 ft·lbf |
| Dimension A | 1.40 " |
| Dimension B | 5.10 " |
| Dimension C | 2.05 " |
| Dimension D | 1.00 " |
| Dimension E | 1 " |
| Dimension F | 7.00 " |
| Dimension G | 1-1/4-7 " |
| Dimension K | 2.81 " |
| Dimension M | 2.95 " |
| UNSPSC #: | 24101602 |
| TAA Compliant: | Yes |
