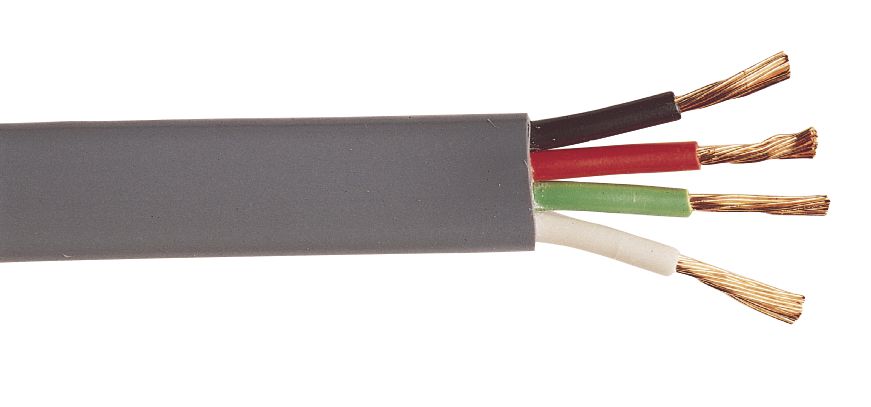

Jacketed Parallel Primary Wire, 16 AWG, 4 Conductor, 100' Length, 60 Volts, White, Black, Green, Red, PVC Insulation
(Pack of
1)
SKU:84000 Item#: 84000
• 100 feet per roll
• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 212°F (100°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-39
Frequently Bought Together
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
$0.00
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 2CP
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 20 AWG 100' White
$0.00
Couldn't load pickup availability
Plastic Covered Primary Wire 12 AWG 100' Black
$0.00
Couldn't load pickup availability
PVC Hook Up Wire 22 AWG 100' Red
$0.00
Couldn't load pickup availability
Jacketed Parallel Primary Wire 16 AWG 2C 100'
$0.00
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 3-Conductor
$0.00
Couldn't load pickup availability
Bonded Parallel Primary Wire 16 AWG 4-Conductor
$0.00
Couldn't load pickup availability
1101 Aqueous Parts Cleaning Solution
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Gray
$0.00
Couldn't load pickup availability
Cross Linked Primary Wire 20 AWG 100' Red
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
$0.00
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
$0.00
Couldn't load pickup availability
Product Description
• 100 feet per roll• Heavy-duty PVC jacket with color-coded connectors
• Two-, three- and four-conductor wire available
• Conductors meet SAE J1128
• Temperature rating: 212°F (100°C)
• Nominal cold temperature rating of –22°F (–30°C)
• RoHS compliant
• Recommended for trucks, buses, tractors, light-duty boats and general service
• For use at 60V or less
NOTE: Primary wire is not recommended in high voltage applications.
Technical Specifications
| Item#: | 84000 |
|---|---|
| Style | Jacketed Parallel Primary Wire |
| Wire Gauge | 16 AWG |
| Color | White, Black, Green, Red |
| Number of Conductors | 4 |
| Length | 100 ft |
| Package Type | 1 Roll |
| Volts | 60 |
| Temperature Rating | 212 °F |
| Approvals | Conductors Meet SAE J1128, RoHS compliant |
| Type | Wire |
| UNSPSC #: | 26121524 |
| TAA Compliant: | No |
| Weight: | 6.8 lb |
