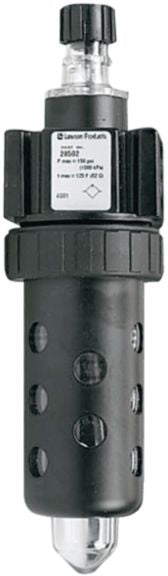

Lubricator, 1/4" Body, 1/4-18 Female NPT, 2oz, 40ft³/min, 150PSI
(Pack of
1)
SKU:28502 Item#: 28502
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Frequently Bought Together
GSS100
$0.00
Couldn't load pickup availability
Pressure Gauge Lower Mount 0 to 60PSI
$0.00
Couldn't load pickup availability
Mounting Bracket Modular 3/8" and 1/2"
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/8-27
$0.00
Couldn't load pickup availability
DOT Swivel Elbow Male 360° Brass 1/4 x 1/4-18
$0.00
Couldn't load pickup availability
Hose Clamp 304 SS 3/4 to 1-3/4"
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 11/16"
$0.00
Couldn't load pickup availability
Air Hose Ferrule Brass 5/8"
$0.00
Couldn't load pickup availability
Hose Barb Hose Mender Brass 1/8 x 1/8"
$0.00
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
$0.00
Couldn't load pickup availability
Fender Lining Screw Grommet Nylon #12
$0.00
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
$0.00
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Technical Specifications
| Item#: | 28502 |
|---|---|
| Description | Lubricator |
| Body Size | 1/4 " |
| Maximum Flow | 40 ft³/min |
| Maximum Pressure | 150 PSI |
| Port Style | Female NPT |
| Port Size | 1/4-18 |
| Bowl Capacity | 2 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | Yes |
| Weight: | 1.07 lb |
