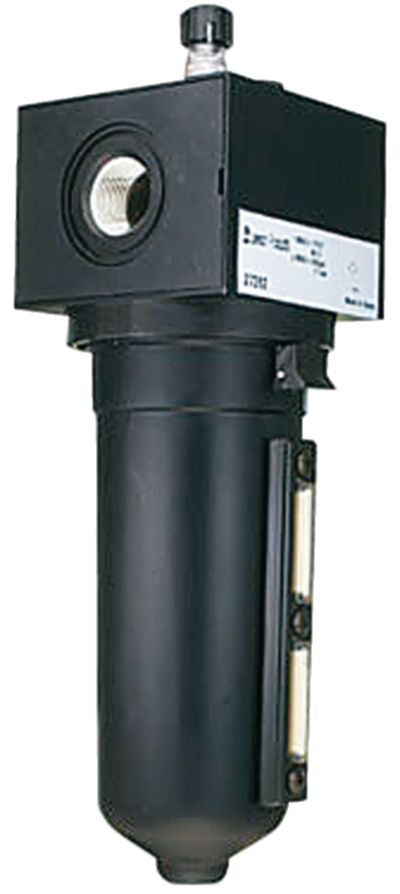

Lubricator 3/4-14 Female NPT
(Pack of
1.0)
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.
• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Frequently Bought Together
Coalescing Filter 1/4-18 Female NPT
Couldn't load pickup availability
Lubricator 3/8-18 Female NPT
Couldn't load pickup availability
GLSS2000
Couldn't load pickup availability
Fuel Line Hose 3/16" ID x 25'
Couldn't load pickup availability
Hose Connector Vacuum Line Cap 3/8" ID
Couldn't load pickup availability
SAE R16S Hydraulic Hose Rubber 0.81" x 50'
Couldn't load pickup availability
Barb-Lok Hose End 3/4" (-12) x 1/2-14 (-8)
Couldn't load pickup availability
Barb-Lok Hose End 1/4" (-4) x 1/4-18 (-4)
Couldn't load pickup availability
Barb-Tite™ Straight Hose End Rigid 5/16"
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Nylon Cable Tie 7-1/2" Black
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
All modules can be completely assembled and disassembled with ordinary hex keys. No tools required for normal maintenance.• Mist adjustment requires no tools (except 1/8" and 1", which require use of a screwdriver)• Solid all-metal body• Clear polycarbonate bowl• 1" body size is all metal with a polycarbonate sight
Ideal for lubrication of air motors, tools and valves where air flow is encountered, these lubricators provide proportional oil delivery over a wide range of air flow. Generates oil particles of five microns or smaller, keeping the microscopic oil particles in suspension for system-wide lubrication.
Technical Specifications
| Item#: | 27392 |
|---|---|
| Description | Lubricator |
| Body Size | 1 " |
| Maximum Flow | 260 ft³/min |
| Maximum Pressure | 250 PSI |
| Port Style | Female NPT |
| Port Size | 3/4-14 |
| Bowl Capacity | 18 Oz. |
| Replacement Polycarbonate Bowl | - |
| Replacement Metal Bowl | - |
| UNSPSC #: | 27131600 |
| TAA Compliant: | No |
| Weight: | 4.04 lb |
