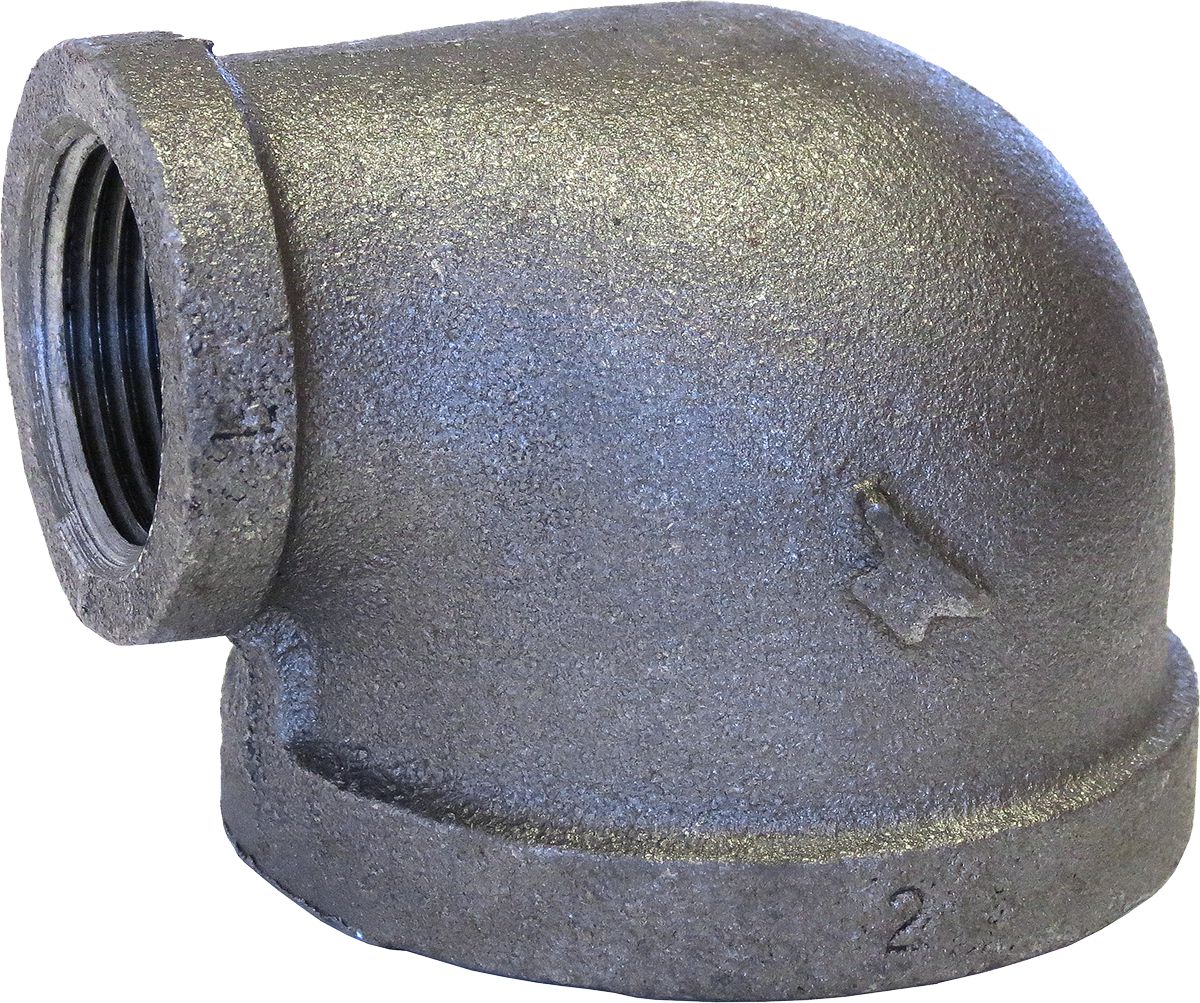

Made In USA Reducing Elbow Malleable Iron 2-1/2-8 x 2-11-1/2
(Pack of
1.0)
150 lb. Rated, Black and Galvanized
• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Polyethylene Tubing 1/4" OD x 100' Black
Couldn't load pickup availability
Polyethylene Tubing 1/4" OD x 100' Yellow
Couldn't load pickup availability
Polyethylene Tubing 1/4" OD x 100' Red
Couldn't load pickup availability
Air Hose Ferrule Brass 1/2"
Couldn't load pickup availability
Push-Button Air Coupler Plug Steel 1/4" x 1/4-18
Couldn't load pickup availability
Hose Nozzle Twist Brass Hose Nozzle Twist
Couldn't load pickup availability
Pipe Cap Malleable Iron 1/2-14
Couldn't load pickup availability
Made In USA Pipe Tee Malleable Iron 1-11-1/2 x 1-11-1/2 x 1-11-1/2
Couldn't load pickup availability
Hex Bushing Steel 2-11-1/2 x 1-1/4-11-1/2
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Utility Knife, Folding , 4" Closed
Couldn't load pickup availability
Spot Weld Remover Drill Bit HSS 2-13/16(M8)
Couldn't load pickup availability
Product Description
150 lb. Rated, Black and Galvanized• Class 150
• Black and Galvanized
ASC Engineered Solutions™ offers the broadest line of malleable iron fitting sizes in both black and galvanized finishes. Every fitting is manufactured and tested to meet ASC's strict quality standards. All Anvil Class 150 Malleable Iron Fittings conform to ASME B16.3 and unions conform to ASME B16.39. All elbows and tees 3/8" (10 DN) and larger are 100% gas tested at a minimum of 100 PSI (6.9 bar).
• Made in USA
• Dimension: ASME B16.3
• Material: ASTM A197
• Galvanizing: ASTM A153
• Thread: ASME B1 20.1
• Pressure Rating: ASME B16.3
• Finish: Black or Galvanized
• UL Listed
• FM approved
Technical Specifications
| Item#: | 1637996 |
|---|---|
| Fitting Type | Pipe |
| Material | Malleable Iron |
| Class | 150 lb. |
| Configuration | Reducing Elbow |
| Angle | 90 ° |
| Connection Type A x B | Female NPT x Female NPT |
| Fitting Dimension A | 2-1/2-8 |
| Fitting Dimension B | 2-11-1/2 |
| Finish | Black |
| Quantity Per Package | 1 ea. |
| UNSPSC #: | 40172806 |
| TAA Compliant: | Yes |
| Weight: | 3.03 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
