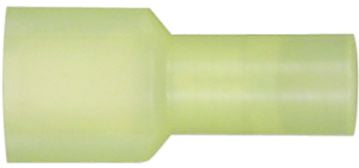

Male Quick Slide Terminal, Fully Insulated, Nylon, 12 to 10 AWG, 1/4" Tab Width, Yellow
(Pack of
50)
Visa Crimp™ provides a high-quality crimp terminal connection. The brazed-seam barrel single crimp design will not open from wire pull, vibration or stress, providing a reliable connection.
Visa Crimp™ terminals feature:
• Funnel-mouth barrel entry for easy wire insertion
• Long barrel for easier crimping in any position
• See-through insulation for foolproof crimping; crack- and chemical-resistance
Visa Crimp™
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-19
Frequently Bought Together
Male Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Disconnect Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Male Quick Slide Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Flashlight with Continuity Tester
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 12CP
Couldn't load pickup availability
Halogen Miniature Bulb 65W 12V
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
Couldn't load pickup availability
Cowl Bumper Fender Liner/Engine Under Cover Rivet
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Female Disconnect Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Product Description
Visa Crimp™ provides a high-quality crimp terminal connection. The brazed-seam barrel single crimp design will not open from wire pull, vibration or stress, providing a reliable connection.Visa Crimp™ terminals feature:
• Funnel-mouth barrel entry for easy wire insertion
• Long barrel for easier crimping in any position
• See-through insulation for foolproof crimping; crack- and chemical-resistance
Visa Crimp™
• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Technical Specifications
| Item#: | P34783 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Tab Width | 1/4 " |
| Blade Thickness | 0.032 " |
| Connection Type | Male |
| Color | Yellow |
| Description | Male |
| Style | Visa Crimp Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.24 lb |
