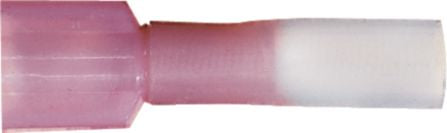

Male Quick Slide Terminal, 3-Piece Heat Seal, Fully Insulated, Nylon, 22 to 18 AWG, 3/16" Tab Width, Red
(Pack of
50)
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.
• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
3-Piece Heat Seal
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-16
Frequently Bought Together
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG
Couldn't load pickup availability
Male Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Snap Receptacle Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Heat Shrink Terminal Assortments 171Pcs
Couldn't load pickup availability
Product Description
The dual protection of heat shrink tubing, pre-shrunk around a nylon-insulated terminal, is an excellent product for harsh, over-the-road and off-road heavy equipment applications.• Dual wall self-seals if accidentally punctured prior to heating
• Clear tubing allows visual inspection and shrinks faster than standard tubing
• Inspection hole completely seals when heat is applied
• Provides positive strain relief at the flex point
• Vapor-proof bond protects connection from moisture, air, dirt, dust, oil and abrasion
3-Piece Heat Seal
• Tensile strength: 2,200 PSI
• Elongation: 600%
• Rated at 600V
• Male – Dimpled tabs help hold the two connectors together even in high vibration conditions
Technical Specifications
| Item#: | P50940 |
|---|---|
| Type | Crimp and Heat Shrink |
| Wire Gauge | 22-18 AWG |
| Tab Width | 3/16 " |
| Connection Type | Male |
| Color | Red |
| Approvals | CSA, RU |
| Style | 3-piece heat seal fully-insulated quick slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.16 lb |
