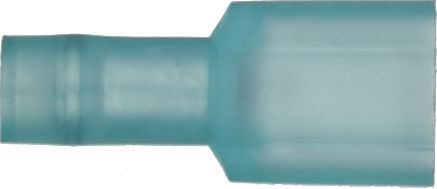

Male Quick Slide Terminal, Fully Insulated, Nylon, 16 to 14 AWG, 3/16" Tab Width, Blue
(Pack of
25)
SKU:86049 Item#: 86049
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Frequently Bought Together
Female Quick Slide Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
$0.00
Couldn't load pickup availability
Male Quick Slide Terminal 12 to 10 AWG Clear
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Master Series Penlight Flashlight
$0.00
Couldn't load pickup availability
Vision Pro Super
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Metric Indented Hex Head Bolt with 17mm Washer
$0.00
Couldn't load pickup availability
Front Bumper and Radiator Support Drive Rivet
$0.00
Couldn't load pickup availability
Spade Terminal 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Step-Down Butt Connector 16 to 14/22 to 18 AWG Red
$0.00
Couldn't load pickup availability
Butt Connector 16 to 14 AWG Blue
$0.00
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Technical Specifications
| Item#: | 86049 |
|---|---|
| Type | Crimp |
| Wire Gauge | 16-14 AWG |
| Tab Width | 3/16 " |
| Connection Type | Male |
| Color | Blue |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
