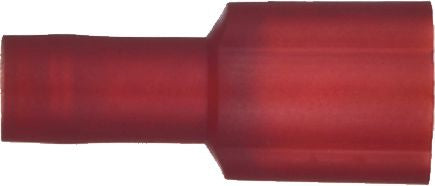

Male Quick Slide Terminal, Fully Insulated, Nylon, 22 to 18 AWG, 1/4" Tab Width, Red
(Pack of
25)
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Catalog page#: 2-21
Frequently Bought Together
Female Disconnect Terminal 16 to 14 AWG
Couldn't load pickup availability
Female Quick Slide Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Male Disconnect Terminal 16 to 14 AWG
Couldn't load pickup availability
Butt Connector 12 to 10 AWG Yellow
Couldn't load pickup availability
Right Angle Safety LED Light 3x AA 7.44"
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Nylon Cable Tie 11-3/4" Black
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
Couldn't load pickup availability
Closed End Connector 600V 16 to 10 AWG Blue
Couldn't load pickup availability
Block Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Snap Receptacle Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
Designed for medium-gauge wires, this quick-connect slide is ideal for mechanical and industrial applications. The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection. Reusable and the fastest way to connect and disconnect two wires.• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Nylon insulation provides high-quality, chemical-resistant electrical insulation for industrial applications
• Manufactured from high-grade copper
• Annealed to flow freely under crimping pressure for best connection
• Electro-tin-plated for greatest corrosion resistance
• 600V
• Male – dimpled tabs help hold the two connectors together even in high-vibration applications
Technical Specifications
| Item#: | 86046 |
|---|---|
| Type | Crimp |
| Wire Gauge | 22-18 AWG |
| Tab Width | 1/4 " |
| Connection Type | Male |
| Color | Red |
| Description | Quick Slide - Fully Insulated |
| Style | Electro-Lok Fully-Insulated Quick Slides |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.09 lb |
