Home Fittings Metric Bulkhead Brass Union Push-On fitting
Fittings

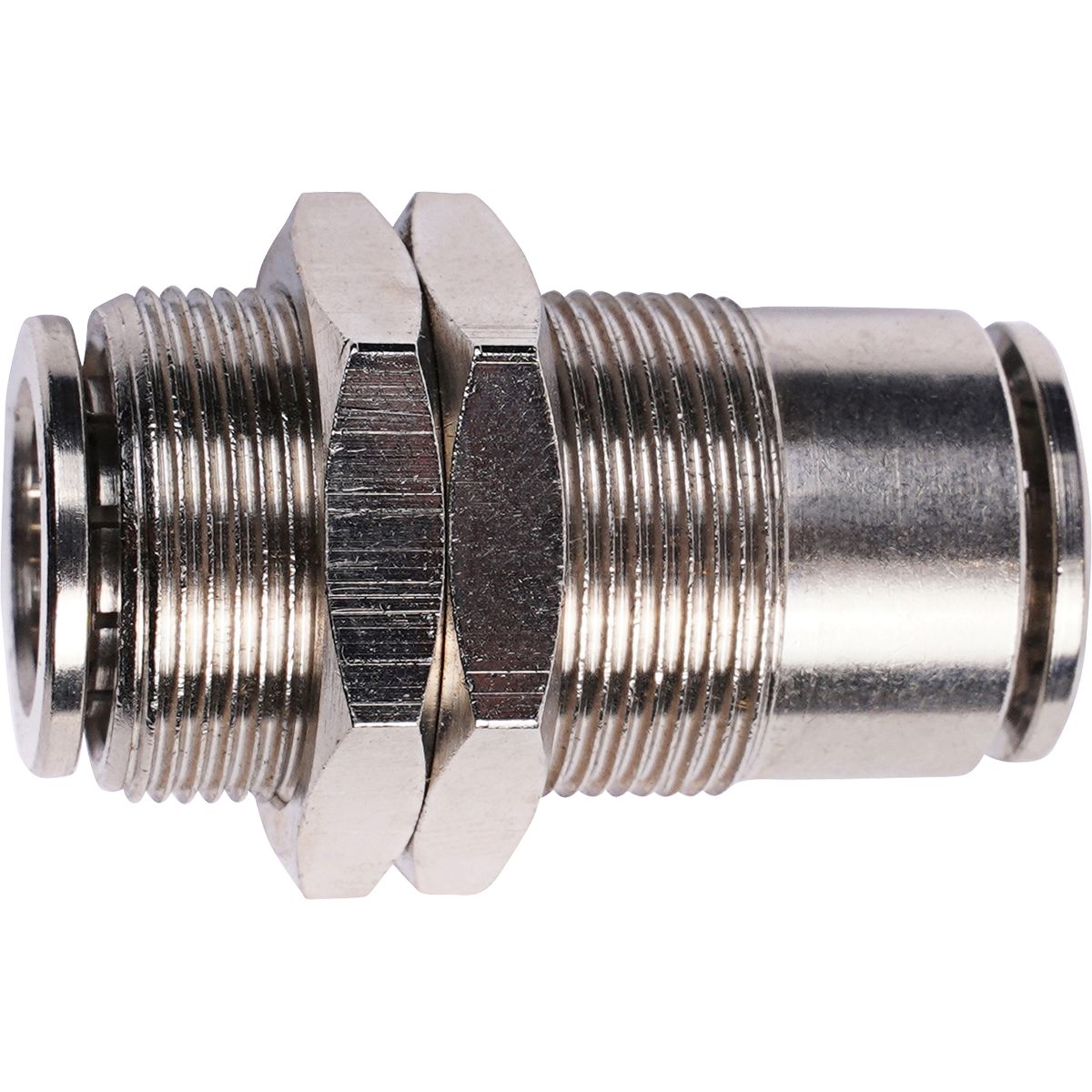

Metric bulkhead brass union push-on connector 12mm tube
(Pack of 1)

Item#: DY41737012

Kent Automotive

• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.

Read More
Check Availability

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together


Pipe Coupling Brass 1/4-18 x 1/4-18

Item#: 5289

Pipe Close Nipple Brass 1/4-18 x 1/4-18

Item#: 5298

Pipe Bushing Brass 3/4-14 x 3/8-18

Item#: 86661

FLEXAIR 3/8" I.D. x 50' air hose assembly w/ Industrial safety coupler

Item#: 1585088

Quick Disconnect Coupler Brass 1/4" x 1/4-18

Item#: 54542

Slotted Hex Head Hose Clamp 301 SS 3/4 to 1-3/4"

Item#: P64102M01

Push-to-Connect Run Tee Nylon 3/8 x 3/8 x 1/4"

Item#: 86776P

Push-to-Connect Y Union Nylon 5/16 x 5/16" x 10 mm

Item#: 54391P

Push-to-Connect Connector Brass 3/8 x 3/8"

Item#: 86806P

Inner Fender Shield Attaching Clip Nylon Black

Item#: P27685

Front Fender Liner Push-Type Retainer Nylon 20mm

Item#: P24252

Bumper Drive Rivet Plastic 10mm Hole

Item#: P85437

Product Description

• Use on instrumentation, circuit, oil, coolant and pneumatic lines• Compact one-piece fittings for use with polyethylene, nylon, polyurethane (90 durometer and over), polybutylene and other soft metal tubing• Quick connect and disconnect feature saves over 75% of assembly time of standard compression fittings• Provide 60% more flow area than conventional fittings with internal tube supports.

Technical Specifications

Item#: DY41737012
Style Push-to-Connect
Configuration Bulkhead Union
Tube Size 12 mm
Thread Size M20x1
Thread Style Metric
Material Nickel-Plated Brass
Wrench Size 24 mm
Bulkhead Nut Size 24 mm
Panel Hole Diameter 21 mm
Panel Thickness 14.5 mm
Mounting Hole Diameter 21 mm
Working Pressure Up To Maximum Working Pressure of Tubing Being Used
Temperature Range -40 to +200 °F
UNSPSC #: 40183100
TAA Compliant: No
Weight: 0.09 lb
