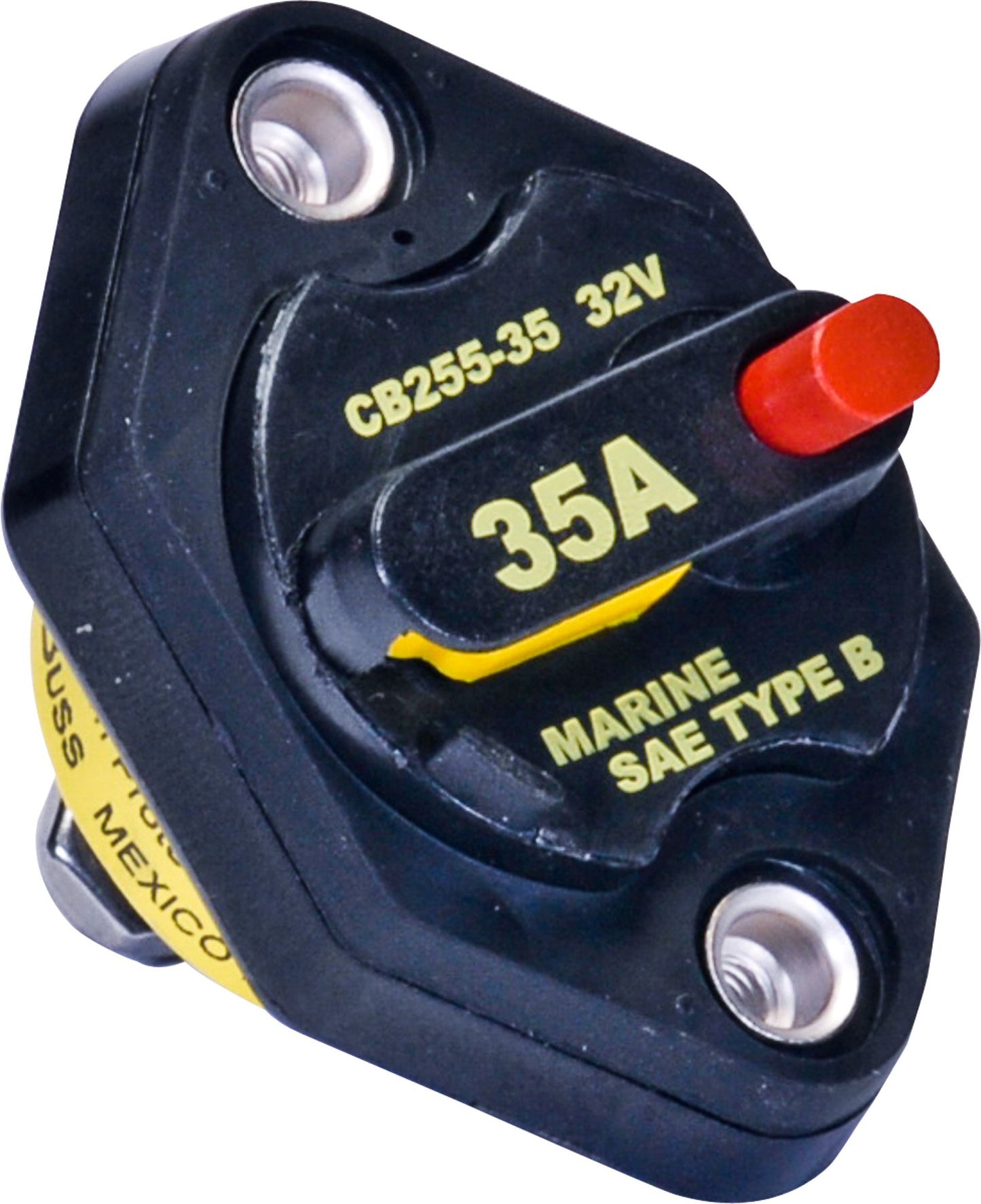

Mid-Range Panel-Mount Circuit Breaker, Type III Manual Reset, 35 Amps, 30 Volts DC, Rounded Profile Body
(Pack of
1)
SKU:50261 Item#: 50261
• Available in either Type I Automatic Reset or Type III Manual Reset with push-to-trip feature
• Rounded profile body and cover boss allow for 3-hole panel cutout mounting
• Standard mounted centers, 8–32 threaded mounting inserts
• Type III Manual Reset type allows opening the circuit path without disconnecting it from the power source
• Voltage rating: 32V DC, for use on 6V, 12V and 24V systems• Ignition protected (ABYC E-9/SAE J1171)
• For either drop-in or rear access mounting
• Applications include marine, RV and agricultural vehicles
Frequently Bought Together
Post-Style Circuit Breaker with Bracket 30A 12V
Couldn't load pickup availability
Post-Style Circuit Breaker with Bracket 25A 12V
Couldn't load pickup availability
ATC Circuit Breaker Type III 15A 24V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 3CP
Couldn't load pickup availability
H11 Halogen Miniature Bulb 55W 12V
Couldn't load pickup availability
Miniature Incandescent Bulb 12V 21CP
Couldn't load pickup availability
Low-Profile MINI Fuse 30A Green
Couldn't load pickup availability
Low-Profile MINI Fuse 7.5A Brown
Couldn't load pickup availability
ATO/ATC Fuse 20A Yellow
Couldn't load pickup availability
Front Fender Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Bumper Fascia General Purpose Split Rivet 3/16"
Couldn't load pickup availability
Drive Rivet Nylon M8
Couldn't load pickup availability
Product Description
• Available in either Type I Automatic Reset or Type III Manual Reset with push-to-trip feature• Rounded profile body and cover boss allow for 3-hole panel cutout mounting
• Standard mounted centers, 8–32 threaded mounting inserts
• Type III Manual Reset type allows opening the circuit path without disconnecting it from the power source
• Voltage rating: 32V DC, for use on 6V, 12V and 24V systems• Ignition protected (ABYC E-9/SAE J1171)
• For either drop-in or rear access mounting
• Applications include marine, RV and agricultural vehicles
Technical Specifications
| Item#: | 50261 |
|---|---|
| Style | Mid-Range Panel-Mounted Circuit Breakers |
| Amperage | 35 A |
| Volts | 32 DC |
| Approvals | Ignition protected (ABYC E-9/SAE J1171) |
| Description | Type III Manual Reset |
| Type | Electrical |
| UNSPSC #: | 39121601 |
| TAA Compliant: | Yes |
| Weight: | 0.11 lb |
