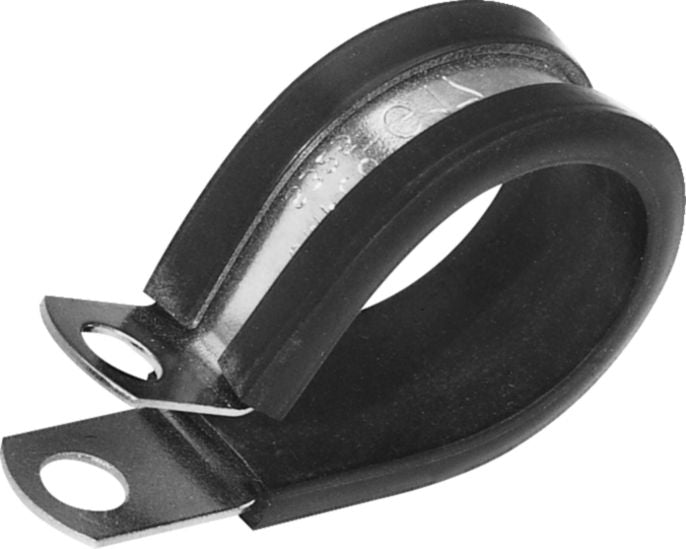

Neoprene Cushioned Cable Clamp, 3/4" Internal Diameter, 1/2" Width, 19mm Diameter, 0.265" Hole Diameter
(Pack of
25)
SKU:88232 Item#: 88232
• Clamps are stamped with the diameter in mm (millimeters) on the band
• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Catalog page#: 2-66
Frequently Bought Together
Neoprene Cushioned Cable Clamp 1-7/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Insulated Cable Clamp 2-1/8"
Couldn't load pickup availability
Neoprene Cushioned Cable Clamp 1 1/8''
Couldn't load pickup availability
Releasable Nylon Cable Tie 40" White
Couldn't load pickup availability
Vinyl Insulated Closed Clip for Cable/Conduit 1-1/4"
Couldn't load pickup availability
Vinyl Insulated Closed Clip for Cable/Conduit 1/2"
Couldn't load pickup availability
Heavy-Duty Vinyl Cable Clamp 4''
Couldn't load pickup availability
Nylon Cable Clamp 5/8"
Couldn't load pickup availability
Heavy-Duty Vinyl Cable Clamp 3 1/2''
Couldn't load pickup availability
Lithium Battery #2450 3V
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Cable Tie Screw Mount #10 Screw Black
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 17mm Washer Steel
Couldn't load pickup availability
Wheel Opening Drive Rivet Aluminum 5/32"
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
• Clamps are stamped with the diameter in mm (millimeters) on the band• Width:
– 1/4" Mounting Hole: 0.50"
– 3/8" Mounting Hole: 0.75"
• Temperature range: –50°F to +350°F
• Metal gauge:
– 1/4" Mounting Hole: 0.032"
– 3/8" Mounting Hole: 0.032" (1/4" to 3/8"); 0.048" (above 3/8")
• Durable non-slip neoprene cushion is recommended for use where resistance to aging, weathering, heat and oil is required
• For reliable vibration-dampening support
Technical Specifications
| Item#: | 88232 |
|---|---|
| Type | Neoprene Cushion |
| Style | 1/4" Mounting Hole |
| I.D. | 3/4 " |
| Width | 1/2 " |
| Diameter | 19 mm |
| Hole Diameter | 0.281 " |
| Industry Number | 12 |
| Specifications | MIL QQ-S-636/AMS 3209 |
| Metal Gauge | 0.032 " |
| Coating Thickness | 0.062 " |
| Temperature Range | -50 to 350 F |
| UNSPSC #: | 39121705 |
| TAA Compliant: | Yes |
| Weight: | 0.71 lb |
Product Restrictions
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
