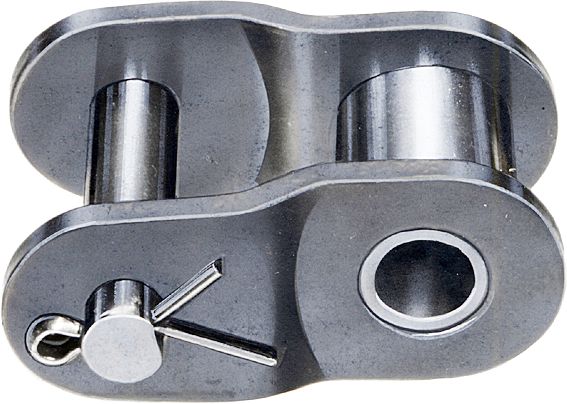

Offset Link (Half Link), Single Strand, Ultimate Power, Stl, Industry No. 100HK, 1-1/4" Pitch, 31,900lbs Average Tensile Strength
(Pack of
5)
Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.
• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds
Frequently Bought Together
Connecting Link, Single Strand, Steel, Industry No. 12B
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 25-2
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 3/16", 4,200 lbs Breaking Streng
Couldn't load pickup availability
Wire Rope, Steel, Nylon Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope Uncoated 1960 Safe Load 5/16" x 100'
Couldn't load pickup availability
Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2
Couldn't load pickup availability
Connecting Link, Double Strand, Steel, Industry No. 08B-2
Couldn't load pickup availability
Connecting Link, Single Strand, Ultimate Power, Steel, Industry No. 80
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
Couldn't load pickup availability
Rocker Panel Molding Clip Nylon White 12 x 20mm
Couldn't load pickup availability
Front Fender Liner Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Product Description
Ultimate Power roller chain conform to the Heavy type of the ANSI roller chain.Their inner and outer plates are equal in thickness to those of the next larger size of standard roller chain.• Approximately 20% higher tensile strength
• Approximately 15% higher maximum allowable load
• Heavy-duty applications at low speeds
Technical Specifications
| Item#: | 1443499 |
|---|---|
| Configuration | Offset Link (Half Link) |
| Type | Single Strand |
| Style | Extra-Heavy |
| Material | Steel |
| Finish | Plain |
| Industry Number | 100HK |
| Pitch | 1-1/4 " |
| Roller Width | 0.750 " |
| Roller Diameter | 0.750 " |
| Plate Thickness | 0.189 " |
| Plate Height | 1.177 " |
| Minimum Tensile Strength | 27,720 lb |
| Average Tensile Strength | 31,900 lb |
| Maximum Load | 5,940 lb |
| UNSPSC #: | 31163027 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
