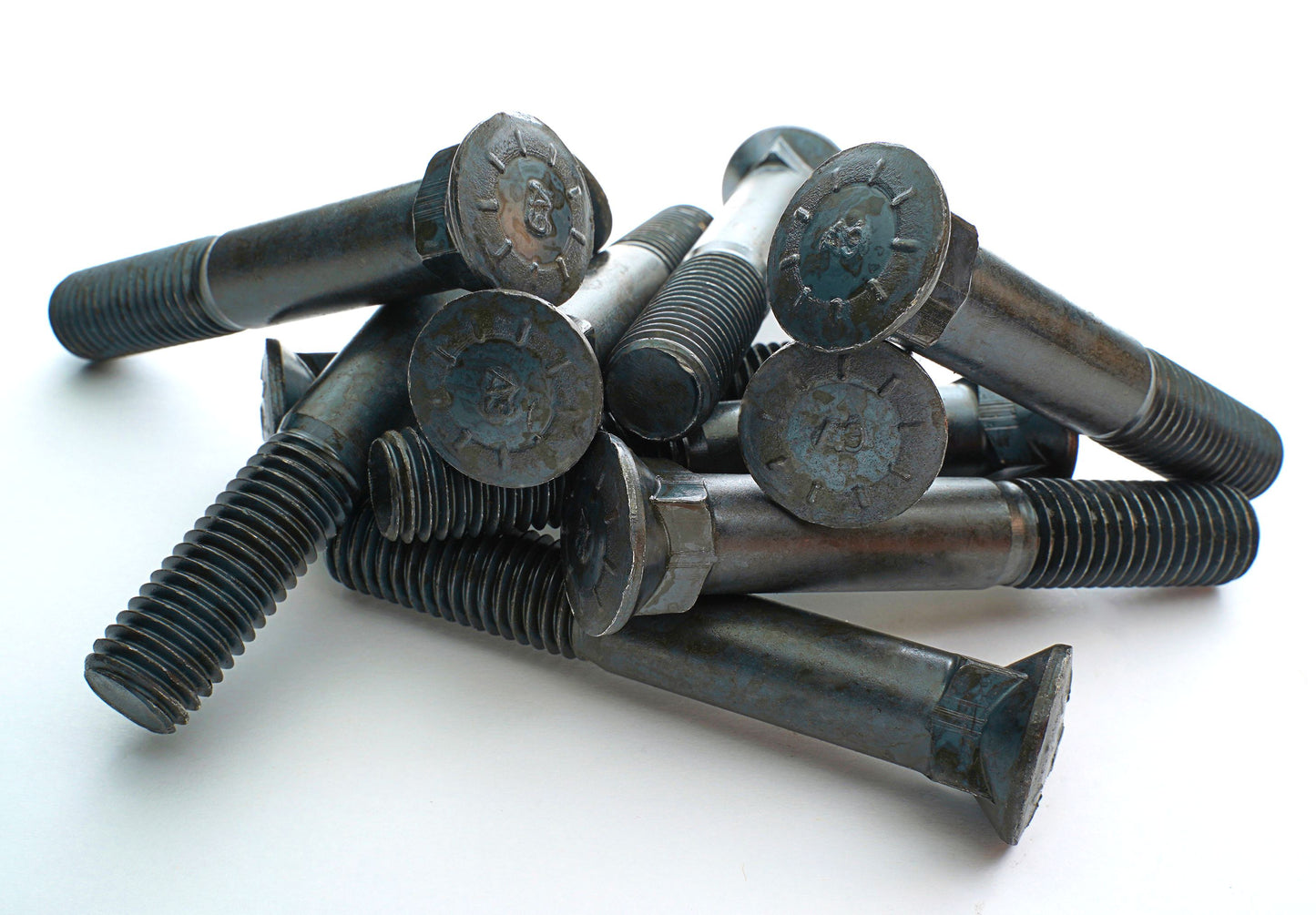

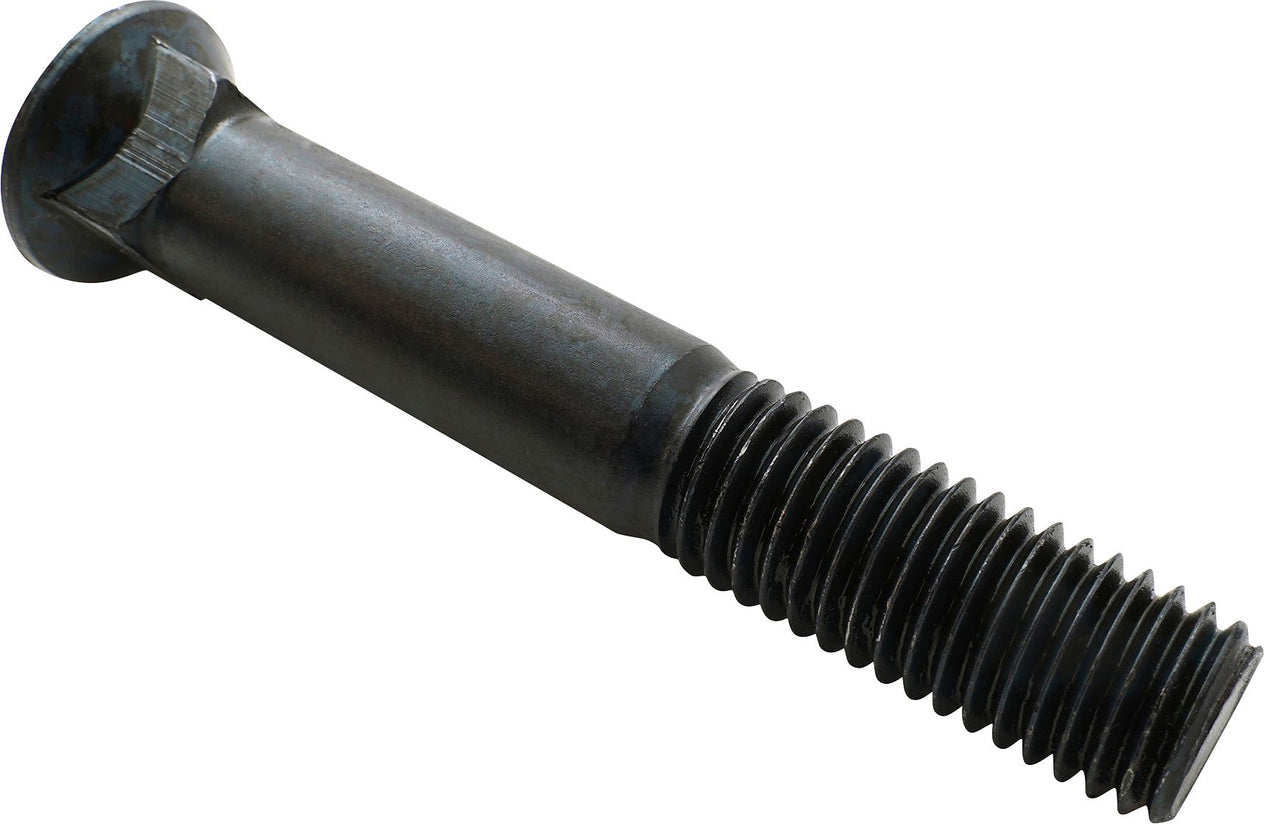

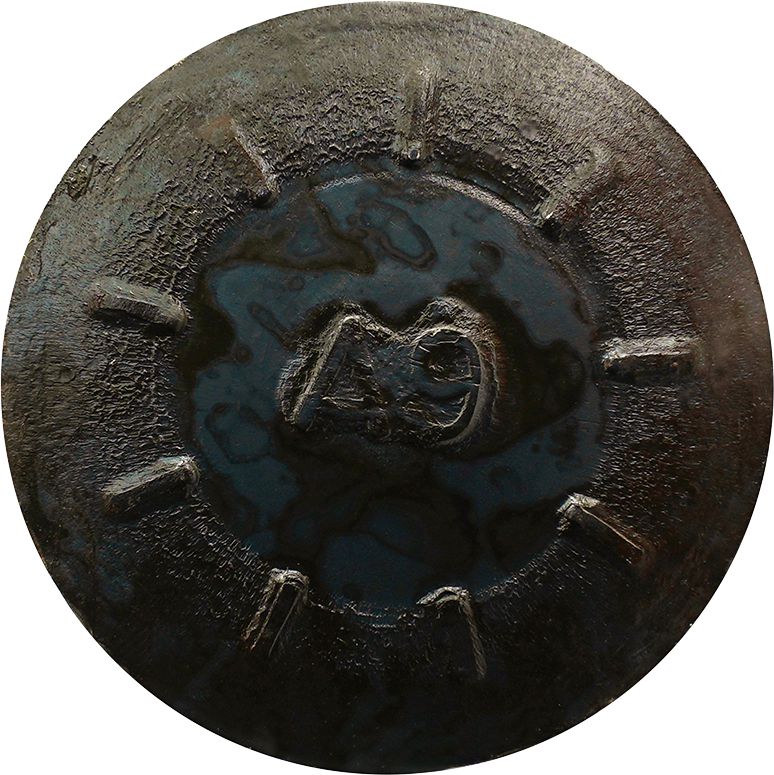

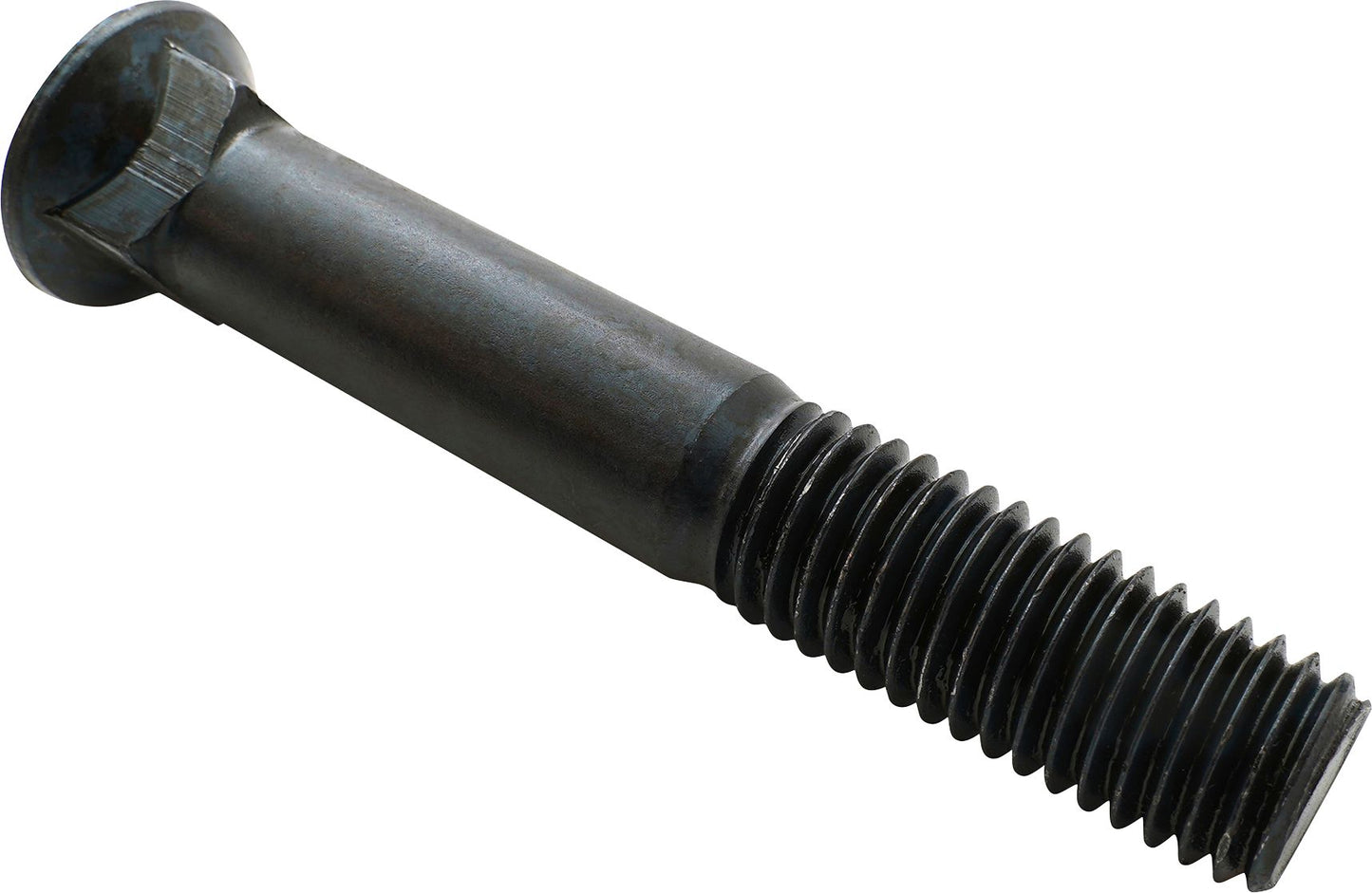

Plow Bolt, Dome Head, A9 (Grade 9), Alloy Steel, Plain Finish, Coarse Thread, 5/8-11 x 4"
(Pack of
10)
SKU:10708 Item#: 10708
• 170,000 PSI minimum tensile strength
• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Frequently Bought Together
DIN 6921 Hex Flange Bolt Grade 8.8 M8-1.25 x 30mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 10.9 M6-1 x 16mm
$0.00
Couldn't load pickup availability
Hex Cap Screw Property Class 8.8 M6-1 x 20mm
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 20mm
$0.00
Couldn't load pickup availability
Open End Rivet Dome Head Aluminum 1/8"
$0.00
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M6-1 x 12mm
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel 3/8-16
$0.00
Couldn't load pickup availability
Acorn Nut A2 Stainless Steel M6-1
$0.00
Couldn't load pickup availability
Hex Nut Grade 8 Steel M12-1.75
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 5/8-11 x 2-1/2"
$0.00
Couldn't load pickup availability
Plow Bolt High Strength A9 5/8-11 x 1-3/4"
$0.00
Couldn't load pickup availability
Plow Bolt Grade 8 1/2-13 x 1-3/4"
$0.00
Couldn't load pickup availability
Front Bumper Drive Rivet Plastic 7mm Hole
$0.00
Couldn't load pickup availability
Front Bumper Push-Type Retainer Nylon 20mm
$0.00
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
$0.00
Couldn't load pickup availability
6310 L Adjustable Ice Traction Device
$0.00
Couldn't load pickup availability
6310 M Adjustable Ice Traction Device
$0.00
Couldn't load pickup availability
N-Ferno 6472 Insulated Bib Overalls - 300D Oxford Shell
$0.00
Couldn't load pickup availability
Product Description
• 170,000 PSI minimum tensile strength• UNRC-2A threads in accordance with ANSI/ASME B1.1
• Temperature range: –50°F to +300°F (–46°C to +149°C)
• Black finish with light oil coating
• Also known as blade bolts and scraper bolts
• For use in fastening the cutting edges of snow plows and heavy earth-moving equipment
• Use with 2-H Heavy Hex Nuts or Tru-Torq® High-Strength Nuts and Tru-Torq® Hardened Flat Washers with A9 Bolts
Technical Specifications
| Item#: | 10708 |
|---|---|
| Type | Plow Bolt |
| Diameter | 5/8 " |
| Thread Pitch | 11 |
| Thread | Coarse |
| Length | 4 " |
| Head Style | Dome |
| Finish | Plain |
| Material | Alloy Steel |
| Grade | 9 |
| Tensile Strength | 170,000 PSI |
| Size | 4 |
| UNSPSC #: | 31161600 |
| TAA Compliant: | Yes |
| Weight: | 3.62 lb |
