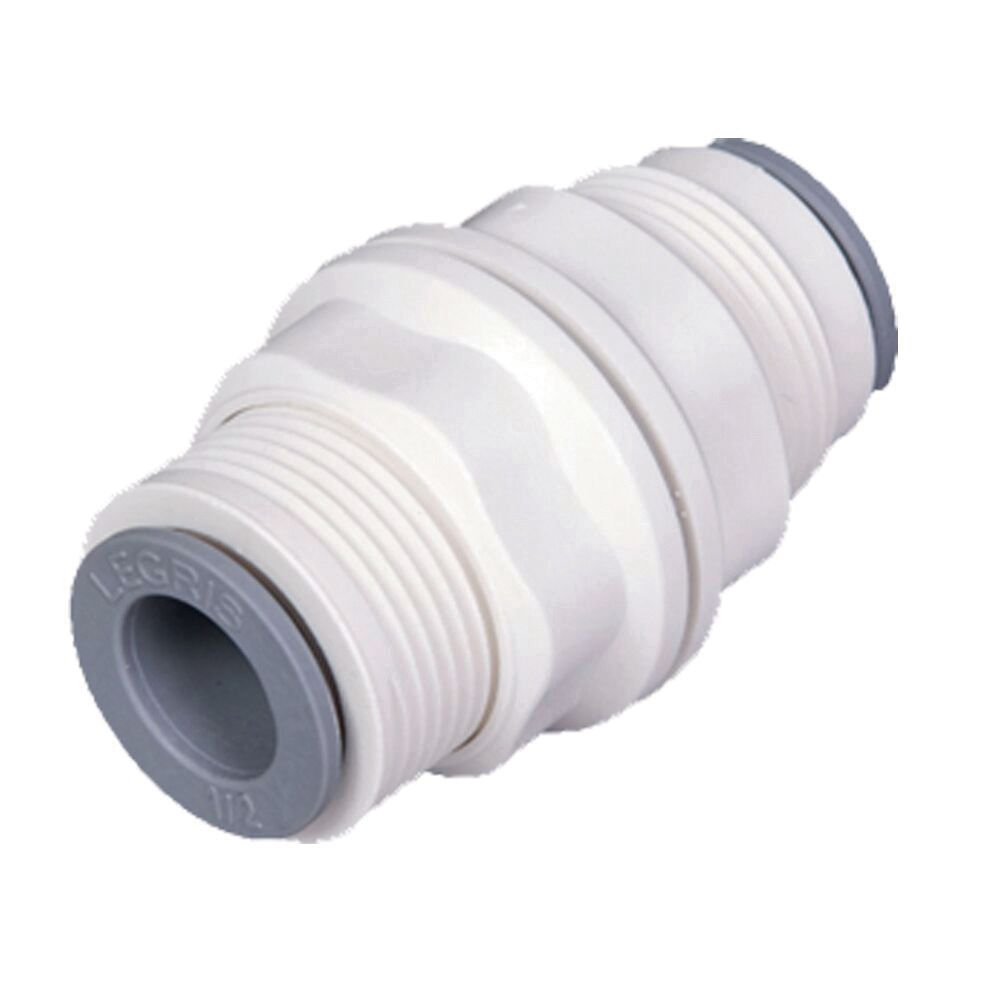

Push-to-Connect Bulkhead Union, Polyoxymethlene, 3/8 x 3/8", Tube x Tube, 232 PSI Working Pressure
(Pack of
5)
SKU:1263035 Item#: 1263035
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.
• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Run Tee, Nickel-Plated Brass/PBT Resin, 5/16 x 5/16 x 1/8"
$0.00
Couldn't load pickup availability
Reducing Coupling Brass 1/2-14 x 3/8-18
$0.00
Couldn't load pickup availability
Pipe Adapter Brass 1/8-27 x 1/4-18
$0.00
Couldn't load pickup availability
Hex Head Plug Brass 1/4-18 Male NPT
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Brass 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Push-Button Air Coupler Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 301 SS 11/16 to 1-1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/4 x 1/4 x 3/8"
$0.00
Couldn't load pickup availability
Push-to-Connect Elbow Nylon 1/4 x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect x Metric Connector Brass 6 mm x M12
$0.00
Couldn't load pickup availability
Fender and Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Molding Clip with Sealer Nylon White 10 x 12mm
$0.00
Couldn't load pickup availability
Product Description
Designed with National Sanitation Foundation (NSF) approved materials which are FDA compliant for food safety. These push-to-connect fittings create a safe, leak-free and rapid connection. For use in food and beverage equipment and potable/drinking water.• Working Temperature: 32°F to 158°F
• Working Pressure: at 77°F – 232psi / at 158°F- 145psi
• Suitable Fluids: Potable drinking water(NSF 61) and food/beverage equipment(NSF 51), compressed air & inert gases
Construction:
• Body Material: POM (High-grade polyoxymethylene)
• Gripping Ring: 301 Stainless Steel
• Release Ring: POM (polyoxymethylene) and 301 stainless stee
• O-Ring: EPDM Rubber
• Beverage Market
– Fountain soda
– Beer and wine
– Coffee and tea machines
• Water Treatment
– Reverse osmosis
– Bottled water dispensers
– Bottling equipment
• Industrial
– Food process
Technical Specifications
| Item#: | 1263035 |
|---|---|
| Configuration | Bulkhead Union |
| Tube Size | 3/8 " |
| Material | Polyoxymethlene |
| Wrench Size | .87 " |
| Panel Hole Diameter | .73 " |
| Panel Thickness | .57 " |
| Working Pressure | 232 PSI |
| Temperature Range | 32 to 158 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
