Push-to-Connect Connector, Nickel Plated Brass, 6mm x 1/2", Tube x Male BSPP, 280 PSI Working Pressure
(Pack of 10)

SKU:1196772P Item#: 1196772P

Parker Fluid Connectors Group

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. Available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and metric threads.
• All items in the LF3000 range are silicone free
• Working Temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155°F)
• Working Pressure: Up to 290 PSI
• Suitable Fluids: Compressed air
• Vacuum Capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Quantity

California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov

Frequently Bought Together

Air Line Connector Brass SAE 45° Flare 1/4 x 1/4"

Pipe Adapter Brass 1/2-14 x 1/2-14

Pipe Elbow Brass 90° 1/8-27 x 1/8-27

Standard Industrial Safety Push-Button Safety Coupler 1/4" Body x 1/4" FNPT

Monsoon Hose Nozzle 3/4"

Quick Disconnect Plug Steel 1/4" x 1/4-18

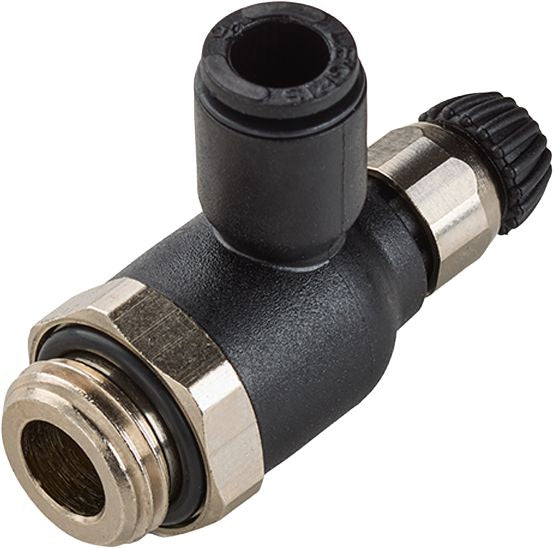

Meter Out Flow Control Regulator, PBT Resin, 4mm x 1/8"

Push-to-Connect Connector, Nickel Plated Brass, 1/2 x 1/2"

Push-to-Connect Branch Tee, PBT Resin, 10 x 10mm x 1/4"

Nylon Cable Tie 15-1/4" Black

Rocker Door and Exterior Molding Retainer

Front Bumper Push-Type Retainer Nylon 10mm

Product Description

Designed for pneumatic installations, the LF3000 system is an essential component in a wide variety of industries. Available in both fractional inch and metric tubes with NPT, UNF, BSPT, BSPP, and metric threads.
• All items in the LF3000 range are silicone free
• Working Temperature: -4°F to +175°F (collet technology 3/16" tube size: 5° F to 155°F)
• Working Pressure: Up to 290 PSI
• Suitable Fluids: Compressed air
• Vacuum Capability: Vacuum of 28" Hg (99% vacuum)
• Construction:
– Body: Glass-reinforced nylon 6.6
– Collar: Nylon
– Gripping ring: Stainless steel (all sizes except 3/16" tube)
– Collet: Brass (3/16" tube size only)
– D seal: Nitrile
– O-ring: Nitrile
– Base: Nickel-plated brass with thread sealant on tapered components and captive seal on parallel threads
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#:	1196772P
Manufacturer Model #:	3101 06 21
Configuration	Male Connector
Tube Size	6 mm
Thread Size	G1/2 "
Thread Style	BSPP
Material	Nickel-Plated Brass
Wrench Size	24 mm
Internal Hex Size	4 mm
Thread Length	7.5 mm
Working Pressure	280 PSI
Temperature Range	-4 to +176 °F
UNSPSC #:	40183100
TAA Compliant:	No
