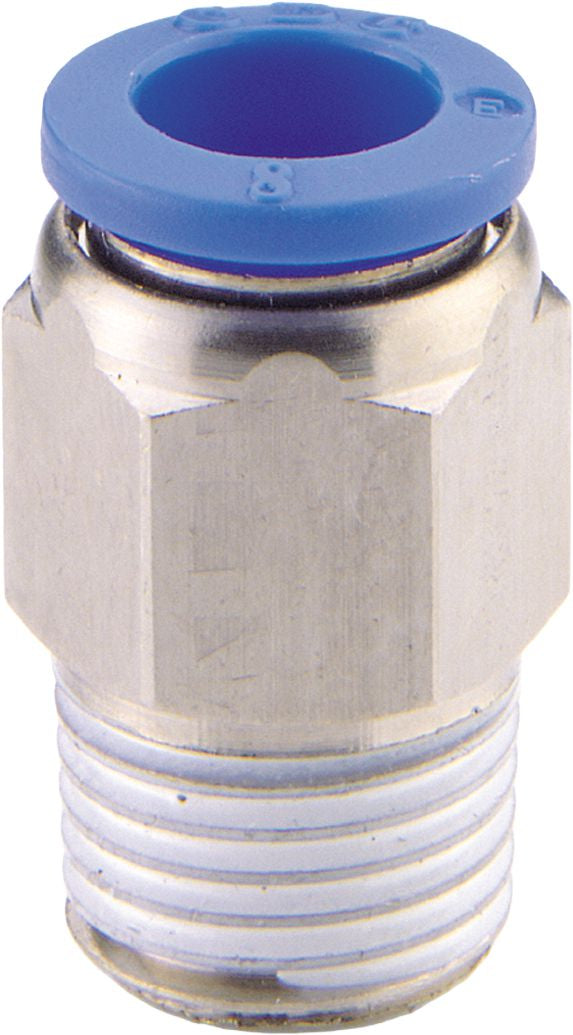

Push-to-Connect Connector, Nickel-Plated Brass/PBT Resin, 1/2 x 1/4", Tube x Male NPT, 150 PSI Working Pressure
(Pack of
3)
SKU:55716 Item#: 55716
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Couldn't load pickup availability
California Proposition 65: WARNING: Cancer and Reproductive Harm -
www.P65Warnings.ca.gov
Frequently Bought Together
Nylon Metric Tubing 6mm OD x 100' Natural
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 3/4" ID x 100' Clear
$0.00
Couldn't load pickup availability
PVC Industrial Tubing, 1/2 ID x 100' Clear
$0.00
Couldn't load pickup availability
Pipe Bushing Brass 1/2-14 x 1/4-18
$0.00
Couldn't load pickup availability
Hex Head Plug Brass 3/4-14 Male NPT
$0.00
Couldn't load pickup availability
Grooved Copper Adapter Coupling, 3" x 3"
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-5/16 to 2-1/4"
$0.00
Couldn't load pickup availability
Quick Disconnect Plug Steel 1/4" x 1/4-18
$0.00
Couldn't load pickup availability
Slotted Hex Head Hose Clamp 1-9/16 to 2-1/2"
$0.00
Couldn't load pickup availability
Push-to-Connect Extension Elbow Nylon 6 mm x 1/4"
$0.00
Couldn't load pickup availability
Push-to-Connect Tee Nylon 3/16 x 3/16 x 3/16"
$0.00
Couldn't load pickup availability
Push-to-Connect Branch Tee Nylon 1/2 x 1/2 x 3/8"
$0.00
Couldn't load pickup availability
Bumper Push-Type Retainer Nylon 18mm
$0.00
Couldn't load pickup availability
Bumper Radiator and Grille Drive Rivet 7mm Hole
$0.00
Couldn't load pickup availability
Push-Type Retainer Nylon 16 x 19mm
$0.00
Couldn't load pickup availability
Product Description
Designed for pneumatic installations and conveyance of inert gases. Resin series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.• Working Temperature: 32°F – 140°F
• Working Pressure: 150 PSI
• Suitable Fluids: Compressed air/inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel plated brass with resin body material constructed of polybutylene terephthalate (PBT)
• Gripping Ring: 301 stainless steel
• Release Ring: Acetal plastic
• O-Ring: NBR (Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.
Technical Specifications
| Item#: | 55716 |
|---|---|
| Configuration | Male Connector |
| Tube Size | 1/2 " |
| Thread Size | 1/4 " |
| Thread Style | NPT |
| Material | Nickel-Plated Brass/PBT Resin |
| Wrench Size | 22 mm |
| Internal Hex Size | .25 " |
| Working Pressure | 150 PSI |
| Temperature Range | 32 to 140 °F |
| UNSPSC #: | 40183100 |
| TAA Compliant: | Yes |
| Weight: | 0.3 lb |
