Home Discontinued Push-To-Connect Fitting, LF3000, Male Run Tee, 10mm Tube x 1/4 BSPT
Discontinued

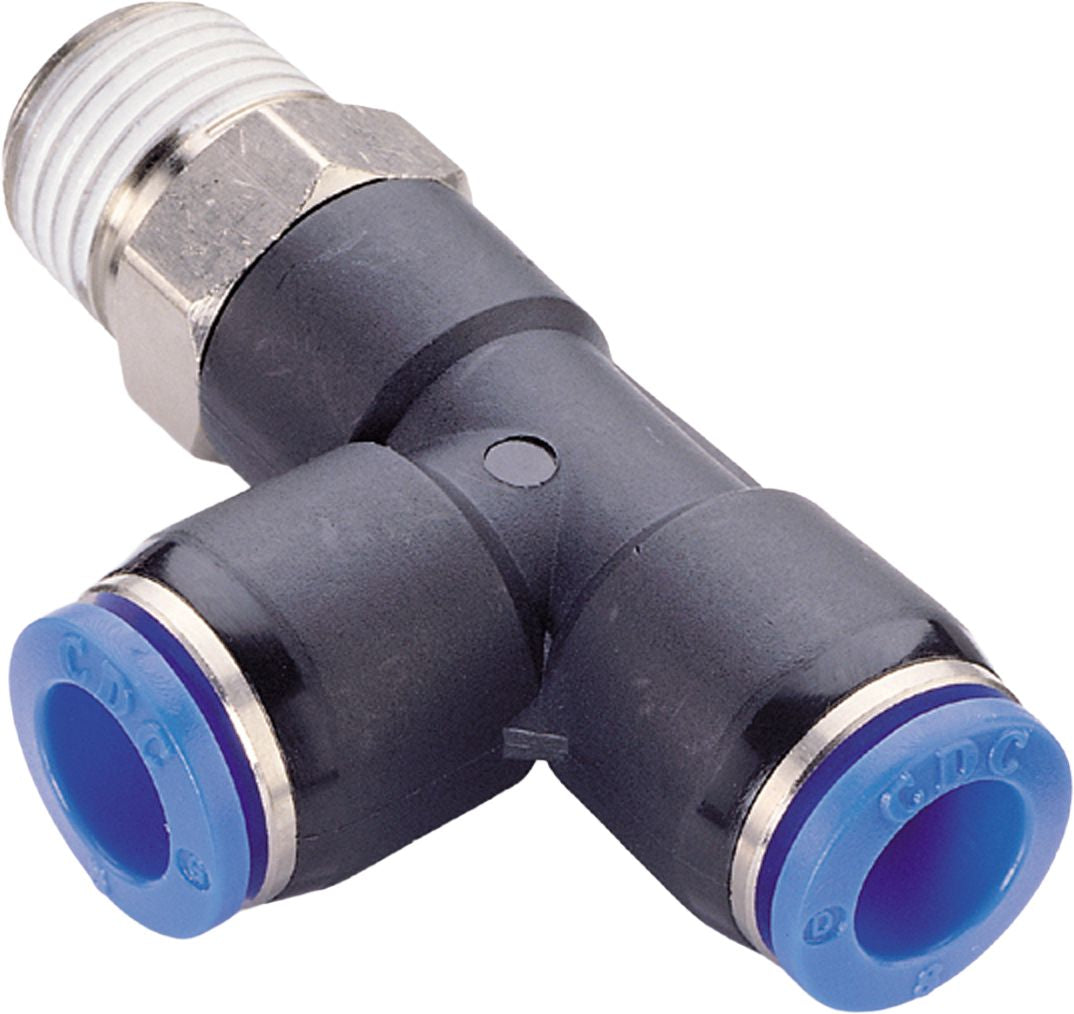

Push-To-Connect Fitting, LF3000, Male Run Tee, 10mm Tube x 1/4 BSPT, Nylon Body, Nickel-Plated Brass Base
(Pack of 10)

Item#: 1198558

Legris

Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Usually Ships: 12 to 14 Business Days

Frequently Bought Together


Bumper Push-Type Retainer Nylon 18mm

Item#: P15600

Bumper Radiator and Grille Drive Rivet 7mm Hole

Item#: P85262

Push-Type Retainer Nylon 16 x 19mm

Item#: 1468633

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 1198558
Manufacturer Model #: 3103 10 13
Style LF3000
Configuration Male Run Tee
Tube Size 10 mm
Thread Size R1/4 "
Thread Style BSPT
Material Nylon Body, Nickel-Plated Brass Base
Wrench Size 15 mm
Working Pressure 290 PSI
Temperature Range -4 to +175 °F
UNSPSC #: 40183100
TAA Compliant: No
