Home Discontinued Push-To-Connect Fitting, LF3000, ”Y“ Male, 12mm Tube x 1/2 BSPT
Discontinued

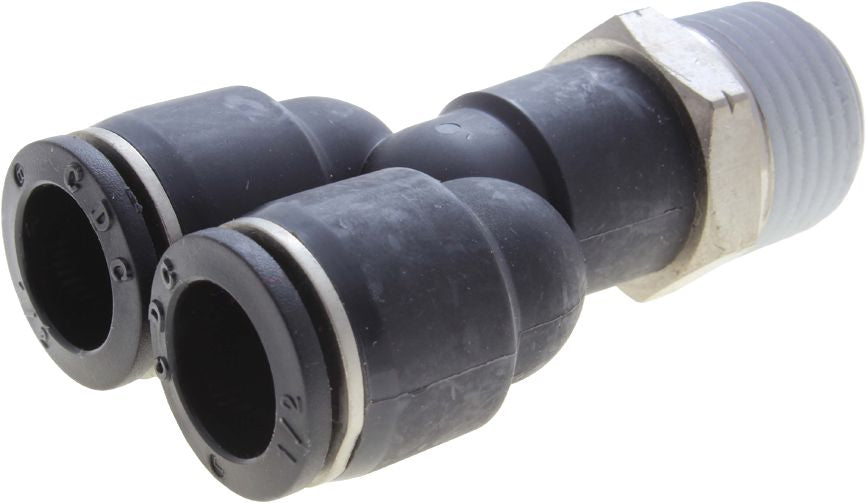

Push-To-Connect Fitting, LF3000, ”Y“ Male, 12mm Tube x 1/2 BSPT, Nylon Body, Nickel-Plated Brass Base
(Pack of 2)

Item#: 17922

Legris

Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Read More
Check Availability
Usually Ships: Today
While Supplies Last

Frequently Bought Together


Front Bumper Push-Type Retainer Nylon 20mm

Item#: P15599

Front Bumper and Radiator Support Drive Rivet

Item#: KT13537

Metric Indented Hex Head Bolt with 17mm Washer

Item#: KT11580

Product Description

Designed for pneumatic installations and conveyance of inert gases. Resin Series is available in both fractional inch and metric tubes. These lightweight composite fittings are all for quick, tool free installation and reliable delivery. Compatible with both polyurethane and nylon tubing.
• Working Temperature: 32°F – 140°F
• Working Pressure: 150 psi
• Suitable Fluids: Compressed Air/Inert gases
• Vacuum Compatibility: 29.5” HG
Construction:
• Body Material: Nickel Plated Brass with Resin Body Material constructed of Polybutylene Terephthalate (PBT)
• Gripping Ring: 301 Stainless Steel
• Release Ring: Acetal Plastic
• O-Ring: NBR(Buna-N)
CAUTION: These fitting systems are not D.O.T. approved. Do not use for air brake connections.

Technical Specifications

Item#: 17922
Manufacturer Model #: 3148 12 21
Style LF3000
Configuration Y Male
Tube Size 12 mm
Thread Size R1/2 "
Thread Style BSPT
Material Nylon Body, Nickel-Plated Brass Base
Wrench Size 21 mm
Working Pressure 290 PSI
Temperature Range -4 to +175 °F
UNSPSC #: 40183100
TAA Compliant: Yes
Weight: 0.25 lb
