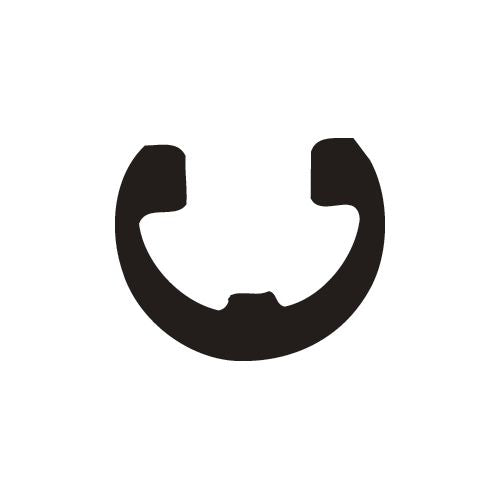

Retaining Ring, External E-Type, Steel, Black Phosphate Finish, 12mm Shaft Diameter
(Pack of
50)
SKU:97039 Item#: 97039
• Phosphate finish
• Meets DIN 6799
Couldn't load pickup availability
Catalog page#: 11-103
Frequently Bought Together
Retaining Ring External E-Type Steel 2.25mm
Item#: 97030
Couldn't load pickup availability
Retaining Ring External E-Type Steel 7/64"
Item#: 11328
Couldn't load pickup availability
Retaining Ring External E-Type Steel 3/4"
Item#: 11246
Couldn't load pickup availability
Open End Rivet Large Flange Head Aluminum 3/16"
Item#: 82353
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M8-1.25 x 40mm
Item#: 55605
Couldn't load pickup availability
Hex Flange Bolt Grade 10.9 M10-1.25 x 25mm
Item#: 28693
Couldn't load pickup availability
Retaining Ring External Steel 2-3/8"
Item#: 92582
Couldn't load pickup availability
Retaining Ring External Steel 2-5/16"
Item#: 92581
Couldn't load pickup availability
Retaining Ring Pliers Fixed Tip 1/8 to 3/8"
Item#: 20602
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Item#: P10200
Couldn't load pickup availability
Fender Splash Shield Push Rivet Nylon 7mm Hole
Item#: KT14296
Couldn't load pickup availability
Front/Rear Bumper Push-Type Retainer Nylon 20mm
Item#: KT13321
Couldn't load pickup availability
Product Description
• Phosphate finish• Meets DIN 6799
Technical Specifications
| Item#: | 97039 |
|---|---|
| Shaft Diameter | 12 mm |
| Ring Clearance | 18.20 mm |
| Ring Thickness | 1.10 mm |
| Groove Diameter | 9.0 mm |
| Groove Width | 1.15 mm |
| Finish | Black Phosphate |
| Type | E Type Retaining Ring |
| Material | Carbon Steel |
| Size | M12 mm |
| UNSPSC #: | 31163202 |
| TAA Compliant: | Yes |
| Weight: | 0.12 lb |
