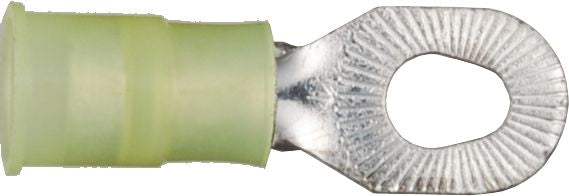

Ring Tongue Terminal 12 to 10 AWG Yellow
(Pack of
25)
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.
Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Same as the ring tongue with the added benefit of accepting multiple sizes of studs – stock one terminal for three different stud sizes• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Lawson's Industrial Grade
Couldn't load pickup availability
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
Frequently Bought Together
Lithium Coin Cell Battery #2032 3V
Couldn't load pickup availability
Heat Shrink Tubing 20 to 16 AWG Black
Couldn't load pickup availability
Miniature Incandescent Bulb 12V
Couldn't load pickup availability
Ring Tongue Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Ring Tongue Terminal 6 AWG
Couldn't load pickup availability
Ring Tongue Terminal 12 to 10 AWG Yellow
Couldn't load pickup availability
Shield Push-Type Retainer with Metal Insert
Couldn't load pickup availability
Front Bumper Specialty Nut Steel M4.2-1.41
Couldn't load pickup availability
Wheel House Molding Split Rivet Aluminum 3/16"
Couldn't load pickup availability
Porcelain Wire Connector 18 to 14 AWG
Couldn't load pickup availability
Wire Connector Assortment 410Pcs
Couldn't load pickup availability
Sure-Lok Wire Connector 22 to 8 AWG Red
Couldn't load pickup availability
Product Description
Electro-Lok terminals provide a superior solderless crimp terminal connection when compared to other traditional terminal.The butted-seam barrel with a flared seamless brass sleeve provides an extremely strong two-crimp connection.Electro-Lok terminals feature:
• Full-length crimp barrel for excellent electrical contact
• A second crimp at the flared portion of the sleeve that provides mechanical stress relief and vibration-resistance at the junction of the wire insulation and barrel
• Molded see-through nylon insulation that provides high-quality, tough, chemical-resistant electrical insulation for industrial applications
Electro-Lok
• Same as the ring tongue with the added benefit of accepting multiple sizes of studs – stock one terminal for three different stud sizes• Manufactured from high-grade copper for the highest conductivity• Annealed to flow freely under crimping pressure for best connection• Electro-tin-plated for greatest corrosion resistance• 600V
Lawson's Industrial Grade
Technical Specifications
| Item#: | 96662 |
|---|---|
| Type | Crimp |
| Wire Gauge | 12-10 AWG |
| Stud Size | 6-8-10 |
| Color | Yellow |
| Approvals | UL, CSA |
| UNSPSC #: | 39121432 |
| TAA Compliant: | Yes |
| Weight: | 0.15 lb |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
