Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 60
(Pack of
10)

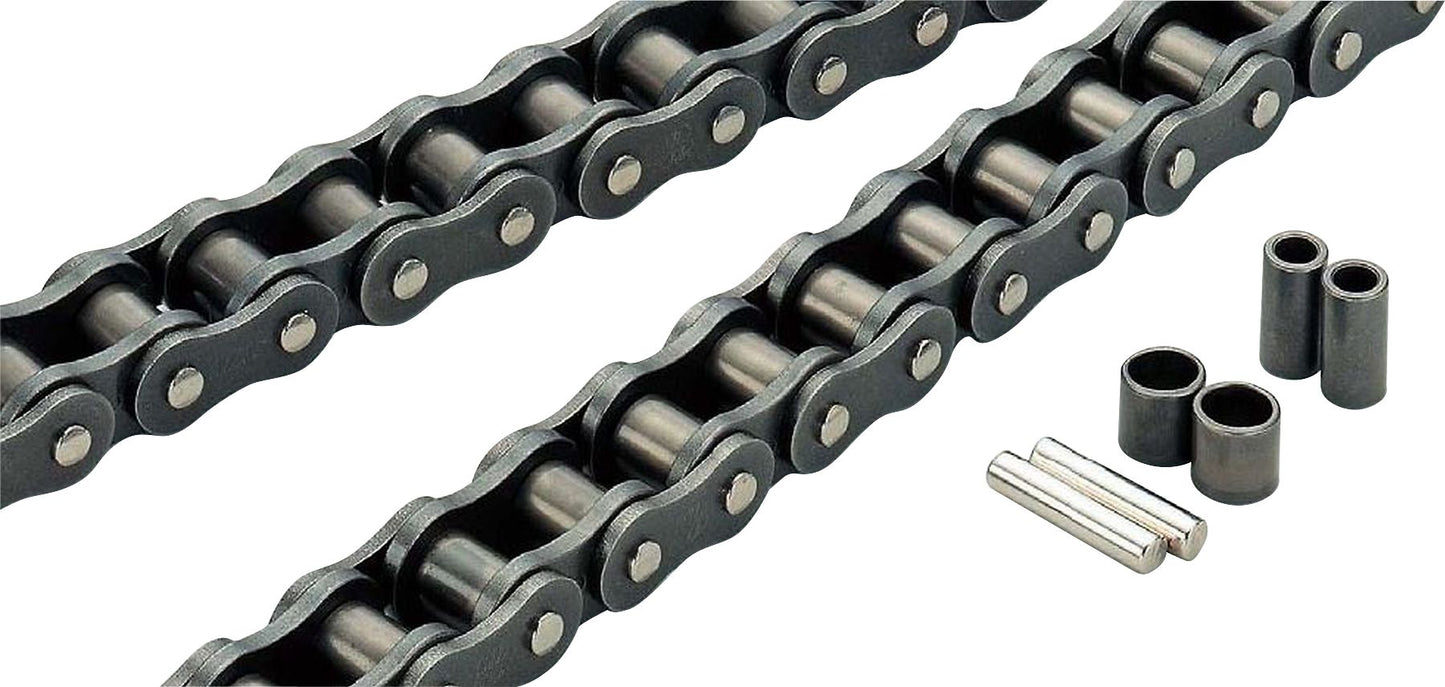

Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.
In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Frequently Bought Together
Roller Chain, Single Strand, Sintered Bushing, Steel, Industry No. 40
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Nickel Plated, Industry No
Couldn't load pickup availability
Roller Chain, Single Strand, Steel, Industry No. 40
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x7, 1/16", 480 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Bare, 7x7, 3/32", 920 lbs Breaking Strength
Couldn't load pickup availability
Wire Rope, Steel, Vinyl Coated, 7x19, 1/4", 7,000 lbs Breaking Strengt
Couldn't load pickup availability
Roller Chain, Double Pitch-Conveyor, Steel, Industry No. C2040
Couldn't load pickup availability
Offset Link (Half Link), Double Strand, Steel, Industry No. 12B-2
Couldn't load pickup availability
Offset Link (Half Link), Single Strand, Stainless Steel, Industry No.
Couldn't load pickup availability
Fender Bumper Shield Retainer 11/16"
Couldn't load pickup availability
Fender Apron Drive Rivet 8mm Hole
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Product Description
Sintered Bushing roller chain has bushings made of a sintered alloy which is impregnated with lubricating oil during manufacture. The sintered bushing roller chain is a maintenance-free chain suitable for applications where lubrication is not permitted.In a sintered bushing roller chain, to compensate for the strength lowered by the use of sintered bushing, the inner plates are thicker than those of a standard roller chain, and the pins are longer.
Technical Specifications
| Item#: | 1443432 |
|---|---|
| Type | Single Strand |
| Style | Standard; Sintered Bushing |
| Material | Steel |
| Finish | Plain |
| Industry Number | 60 |
| Pitch | 3/4 " |
| Roller Width | 0.500 " |
| Roller Diameter | 0.469 " |
| Plate Thickness | 0.126 " |
| Plate Height | 0.713 " |
| Length | 10 ft |
| Average Tensile Strength | 9,460 lb |
| Maximum Load | 2,090 lb |
| UNSPSC #: | 31151603 |
| TAA Compliant: | Yes |
Product Restrictions
California Proposition 65: Not Applicable
www.P65Warnings.ca.gov
