Security Anchor, Reversible Head, Steel, Zinc Finish, 3/8 x 5"
(Pack of
10)
SKU:59631 Item#: 59631
• Resistant to tampering and vibration

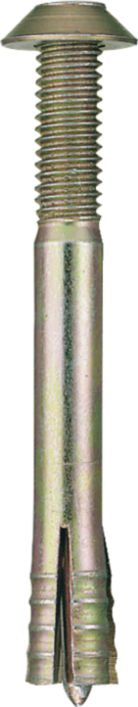

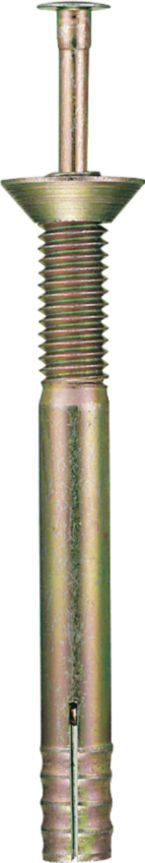

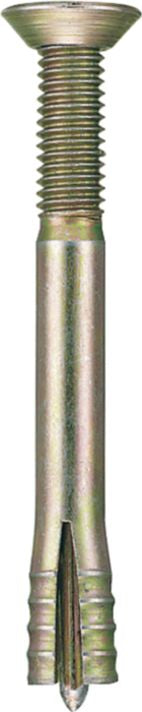

• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.
3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.
Frequently Bought Together
Light-Medium Duty Anchor Assortment 555Pcs
$0.00
Couldn't load pickup availability
Wallboard Anchor Assortment 1125Pcs
$0.00
Couldn't load pickup availability
Hollow Wall Screw Anchor Assortment 195Pcs
$0.00
Couldn't load pickup availability
Pin Drive Expansion Anchor Steel 3/4 x 6"
$0.00
Couldn't load pickup availability
Expansion Shield Anchor Alloy Steel 1/4"
$0.00
Couldn't load pickup availability
Double Expansion Shield Anchor Alloy Steel 1/4"
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 5/16"
$0.00
Couldn't load pickup availability
DIN 125A Flat Washer Grade 140 HV M12
$0.00
Couldn't load pickup availability
SAE Flat Washer Thru-Hardened Steel 1/4"
$0.00
Couldn't load pickup availability
Hex Head Sheet Metal Screw with 16mm Washer Steel
$0.00
Couldn't load pickup availability
Air Distributor Defroster Push-Type Retainer
$0.00
Couldn't load pickup availability
Fender Liner Screw Grommet Nylon M5.5
$0.00
Couldn't load pickup availability
Product Description
• Resistant to tampering and vibration• Reversible nut for round head or flat head style
• Carbon steel anchor body and nut with hardened setting pin
• High pull-out and shear strength
• Made in USA
• For use in all poured concrete and brick materials
• Applications: Security door frames, motion detectors, lock boxes, money meters, fencing, vending machines, burglar bars, benches, light fixtures, playground equipment, cash machines, stadium seating, mailboxes, prison furniture
1. Drill hole of sufficient depth, using same diameter bit as anchor being installed.
2. Select head style (round or flat), then turn security nut flush with the top of anchor. Insert anchor into pre-drilled hole.
3. Drive in setting pin with hammer until flush. Use a 2 to 3 lb. hammer for small anchors and a 4 to 5 lb. hammer for medium and large anchors.
4. Slotted anchor base expands into concrete. Anchor is now properly set.
Technical Specifications
| Item#: | 59631 |
|---|---|
| Anchor Size | 3/8 " |
| Length | 5 " |
| Type | Security Anchor |
| Material | Carbon Steel |
| Finish | Zinc |
| Size | 3/8X5 " |
| UNSPSC #: | 31162101 |
| TAA Compliant: | Yes |
| Weight: | 1.66 lb |
