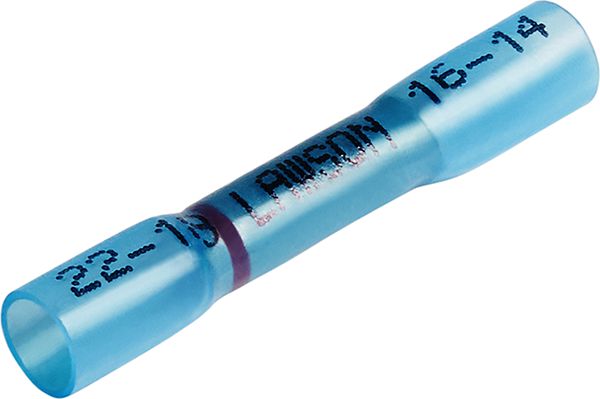

Step-Down Butt Connector, Insulated, 16 to 14/22 to 18 AWG, 1.5" Length, Red
(Pack of
10)
SKU:KT13697 Item#: KT13697
• Seal and protect electrical connections against failure due to water, moisture, corrosion, vibration and strain
• Dual wall heat shrink tubing pre-shrunk around an electro-tin-plated copper butt splice
• The inner wall adhesive hot-melts into the wire insulation to encapsulate and seal the connection
• Outer wall shrinks to provide strength with flexibility
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• Color-coded, semi-transparent insulation for excellent crimping every time
• Self-seals if accidentally punctured prior to heating
• Tensile strength: 3,200 PSI minimum• Elongation: 200% minimum• Working voltage: 600V• Continuous operating temperature: –67°F to +230°F (–55°C to +110°C)• Minimum shrink temperature: 248°F (120°C)
• Butt connectors have a unique, double-thick insulation for burial, water-exposed, high-stress and vibration applications
Couldn't load pickup availability
Catalog page#: 2-17
Frequently Bought Together
Butt Connector 16 to 14 AWG Blue
Couldn't load pickup availability
Butt Connector 8 AWG Red
Couldn't load pickup availability
Step-Down Butt Connector 8 to 12/10 AWG Pink
Couldn't load pickup availability
Ring Tongue Terminal 22 to 18 AWG Red
Couldn't load pickup availability
Lithium Battery #2450 3V
Couldn't load pickup availability
Energizer® AAA Alkaline Battery 1.5V
Couldn't load pickup availability
High-Tech Seam Sealer Clear 5fl.oz
Couldn't load pickup availability
Phillips Truss Head Sheet Metal Screw Steel 15mm
Couldn't load pickup availability
Push-Type Retainer Nylon 20mm
Couldn't load pickup availability
Block Spade Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Snap Receptacle Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Female Quick Slide Terminal 16 to 14 AWG Blue
Couldn't load pickup availability
Product Description
• Seal and protect electrical connections against failure due to water, moisture, corrosion, vibration and strain• Dual wall heat shrink tubing pre-shrunk around an electro-tin-plated copper butt splice
• The inner wall adhesive hot-melts into the wire insulation to encapsulate and seal the connection
• Outer wall shrinks to provide strength with flexibility
• Unaffected by most oils, fuels, solvents, chemicals and road salts
• Color-coded, semi-transparent insulation for excellent crimping every time
• Self-seals if accidentally punctured prior to heating
• Tensile strength: 3,200 PSI minimum• Elongation: 200% minimum• Working voltage: 600V• Continuous operating temperature: –67°F to +230°F (–55°C to +110°C)• Minimum shrink temperature: 248°F (120°C)
• Butt connectors have a unique, double-thick insulation for burial, water-exposed, high-stress and vibration applications
Technical Specifications
| Item#: | KT13697 |
|---|---|
| Type | Crimp and Heat Shrink |
| Wire Gauge | 16-14 to 22-18 AWG |
| Color | Blue |
| Length | 1.50 " |
| Full Barrel End | 16-14 AWG |
| Step-Down Barrel End | 22-18 AWG |
| Full Barrel End Accommodates | One 14 Ga., One 16 Ga., One 16 and One 18 Ga., or Two 18 Ga. Wires |
| Step-Down Barrel End Accommodates | One 18 Ga., One 22 Ga., or Two 22 Ga. Wires |
| Maximum Splice Length | 0.695 " |
| Voltage Rating | 600 V |
| Operating Temperature Range | -67 to 230 °F |
| Shrink Temperature | 248 F |
| Elongation | 200 % |
| Maximum Wire Insulation | 0.190 " |
| Style | Heat Seal Step-Down Butt Connectors |
| UNSPSC #: | 39121409 |
| TAA Compliant: | Yes |
| Weight: | 0.07 lb |
